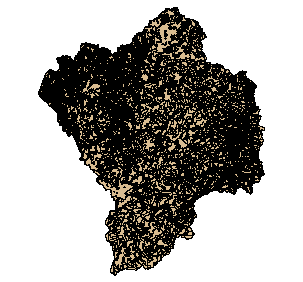

Soil types for the Coquille Watershed (1:24,000 )
.gif)
Identification_Information
Data_Quality_Information
Spatial_Data_Organization_Information
Spatial_Reference_Information
Entity_and_Attribute_Information
Distribution_Information
Metadata_Reference_Information
Identification Information
Section Index
Citation:
Citation Information:
Originator:
Natural Resources Conservation Service, Soil Conservation
Service and Oregon Bureau of Land Management
Publication Date: 1999
Title: Soil types for the Coquille Watershed (1:24,000 )
Edition: 1995
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Portland, Oregon
Publisher: Oregon Bureau of Land Management
Online Linkage: http://www.or.blm.gov:80/gis/gsd/complete.html
Larger Work Citation:
Citation Information:
Originator: Natural Resources Conservation Service, Soil Conservation Service
Publication Date: In progress
Title: Soil Survey for Coos and Douglas Counties
Publication Information:
Publication Place: NA
Publisher: Natural Resources Conservation Service, Soil Conservation Service
Online Linkage: ftp://soils.css.orst.edu/pub/webdocs/ssurgo.html
Description:
Abstract:
This coverage depicts soil types in the Coquille watershed. The soil types were obtained in hard copy from NRCS, and
digitized / checked by BLM.
Purpose: To create a digital soil coverage for use in GIS at an earlier date than was possible from NRCS alone.
Time Period of Content:
Currentness Reference: 1999
Status:
Progress: Complete
Maintenance and Update Frequency: Unknown
Spatial Domain:
Bounding Coordinates:
West Bounding Coordinate: -121.0126
East Bounding Coordinate: -120.2156
North Bounding Coordinate: 43.4103
South Bounding Coordinate: 42.7217
Keywords:
Theme:
Theme Keyword Thesaurus: None
Theme Keyword: Soil
Theme Keyword: Soil types
Place:
Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Coquille
Place Keyword: Coast
Access Constraints: None
Use Constraints: see diclaimer
Point of Contact:
Contact Information:
Contact Organization Primary:
Contact Organization: US Forest Service
Contact Person: Anne Boeder/ Jim McGuinnes
Contact Position: GIS Analyst
Contact Address:
Address Type: mailing and physical address
Address: 1300 Airport Way
City: North Bend
State or Province: Oregon
Postal Code: 97459
Country: USA
Native Data Set Environment: Arc/Info coverage format
Data Quality Information
Section Index
Attribute Accuracy:
Attribute Accuracy Report: Polygons were checked for correct Soil Type Labeling by BLM
Logical Consistency Report: Polygon topology present
Completeness Report: The data are assumed to be complete
Positional Accuracy:
Horizontal Positional Accuracy:
Horizontal Positional Accuracy Report: 1:24,000 scale orthophotos were used as a base for this coverage
Lineage:
Source Information:
Source Citation:
Citation Information:
Originator:
Natural Resources Conservation Service, Soil Conservation
Service and Oregon Bureau of Land Management
Publication Date: 1999
Title: Soil types for the Coquille Watershed (1:24,000 )
Edition: 1995
Geospatial Data Presentation Form: Map
Publication Information:
Publication Place: Portland, Oregon
Publisher: Oregon Bureau of Land Management
Online Linkage: http://www.or.blm.gov:80/gis/gsd/complete.html
Larger Work Citation:
Citation Information:
Originator: Natural Resources Conservation Service, Soil Conservation Service
Publication Date: In progress
Title: Soil Survey for Coos and Douglas Counties
Publication Information:
Publication Place: NA
Publisher: Natural Resources Conservation Service, Soil Conservation Service
Online Linkage: ftp://soils.css.orst.edu/pub/webdocs/ssurgo.html
Source Scale Denominator: 24000
Type of Source Media: ortho photo 1\3 quads
Source Time Period of Content:
Time Period Information:
Range of Dates/Times:
Beginning Date: 1993
Beginning Time: Unknown
Ending Date: 1995
Ending Time: Unknown
Source Currentness Reference: 1999
Source Citation Abbreviation: coosoils.e00, coqsoils.e00, rsbsoils.e00
Source Contribution: Polygons and attributes. The Coquille Basin was simply clipped out of the larger 2-county coverage.
Process Step:
Process Description:
Downloaded the .e00 files from the BLM ftp site. Appended the files to create a single cover and clipped to the project boundary. Original Steps as follows:
The Soil Conservation Service supplied 98 Coos County Soil ortho photos, in 1/3 quad format, at a scale of 1:24000 to
our State Office where they were copied to acetates and sent to the Coos Bay District Office. We scanned the acetates at 300dpi, to make raster files and these were then edited, edgematched and converted to vector files.
They were then imported into MOSS/GIS and merged into full quads, checked for soil type labeling and edgematched
again. In Arc/Info they were converted into coverages using the mossarc command and inserted into our corporate library.
Process Date: 1999
Cloud Cover: 0
Spatial Data Organization Information
Section Index
Direct Spatial Reference Method: Vector
Point and Vector Object Information:
SDTS Terms Description:
SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 5564
Spatial Reference Information
Section Index
Horizontal Coordinate System Definition:
Planar:
Map Projection:
Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:
Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0
Planar Coordinate Information:
Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:
Abscissa Resolution: 0
Ordinate Resolution: 0
Planar Distance Units: international feet
Geodetic Model:
Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257
Entity and Attribute Information
Section Index
Detailed Description:
Entity Type:
Entity Type Label: soil.pat
Entity Type Definition: Polygon Attribute Table
Entity Type Definition Source: None
Attribute:
Attribute Label: Area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Perimeter
Attribute Definition: Perimeter of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Soil#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Soil-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: User Defined
Attribute:
Attribute Label: Soil_
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:
Unrepresentable Domain: Software computed
Attribute:
Attribute Label: Soil_id
Attribute Definition: User assigned feature ID
Attribute Domain Values:
Range Domain:
Range Domain Minimum: 0
Range Domain Maximum: 5255
Attribute:
Attribute Label: Subj_sls
Attribute Definition: Soil type
Attribute Domain Values:
Unrepresentable Domain: Character Field
Overview Description:
Entity and Attribute Overview:
_________________________________________________________________________________________________________________
| |
| Map | Soil name
| symbol |
|________|_______________________________________________________________________________________________________
| |
| 1B |BANDON SANDY LOAM, 0 TO 7 PERCENT SLOPES
| 1C |BANDON SANDY LOAM, 7 TO 12 PERCENT SLOPES
| 1D |BANDON SANDY LOAM, 12 TO 30 PERCENT SLOPES
| 2C |BANDON-BLACKLOCK COMPLEX, 0 TO 12 PERCENT SLOPES
| 3 |BEACHES
| 4D |BLACHLY SILTY CLAY LOAM, 0 TO 30 PERCENT SLOPES
| 4E |BLACHLY SILTY CLAY LOAM, 30 TO 50 PERCENT SLOPES
| 5A |BLACKLOCK FINE SANDY LOAM, 0 TO 3 PERCENT SLOPES
| 5B |BLACKLOCK FINE SANDY LOAM, 3 TO 7 PERCENT SLOPES
| 6E |BOHANNON-MILBURY COMPLEX, 30 TO 50 PERCENT SLOPES
| 7 |BRALLIER MUCKY PEAT
| 8B |BULLARDS SANDY LOAM, 0 TO 7 PERCENT SLOPES
| 8C |BULLARDS SANDY LOAM, 7 TO 12 PERCENT SLOPES
| 8D |BULLARDS SANDY LOAM, 12 TO 30 PERCENT SLOPES
| 8E |BULLARDS SANDY LOAM, 30 TO 50 PERCENT SLOPES
| 9 |CHETCO SILTY CLAY LOAM
| 10A |CHISMORE SILT LOAM, 0 TO 3 PERCENT SLOPES
| 10B |CHISMORE SILT LOAM, 3 TO 7 PERCENT SLOPES
| 10C |CHISMORE SILT LOAM, 7 TO 12 PERCENT SLOPES
| 11 |CLATSOP MUCKY PEAT
| 12 |COQUILLE SILT LOAM
| 13C |DEMENT SILT LOAM, 2 TO 12 PERCENT SLOPES
| 13D |DEMENT SILT LOAM, 12 TO 30 PERCENT SLOPES
| 13E |DEMENT SILT LOAM, 30 TO 50 PERCENT SLOPES
| 13F |DEMENT SILT LOAM, 50 TO 70 PERCENT SLOPES
| 14F |DIGGER-PREACHER-UMPCOOS ASSOCIATION, 50 TO 80 PERCENT SLOPES
| 15F |DIGGER-UMPCOOS-ROCK OUTCROP ASSOCIATION, 50 TO 90 PERCENT SLOPES
| 16 |DUNE LAND
| 17B |EILERTSEN SILT LOAM, 0 TO 7 PERCENT SLOPES
| 18E |ETELKA SILT LOAM, 30 TO 50 PERCENT SLOPES
| 19F |ETELKA-REMOTE COMPLEX, 50 TO 70 PERCENT SLOPES
| 20D |ETELKA-RINEARSON-ORFORD COMPLEX, 12 TO 30 PERCENT SLOPES
| 20E |ETELKA-RINEARSON-ORFORD COMPLEX, 30 TO 50 PERCENT SLOPES
| 21D |ETELKA-WHOBREY SILT LOAMS, 7 TO 30 PERCENT SLOPES
| 22E |ETELKA-WHOBREY-REMOTE COMPLEX, 30 TO 60 PERCENT SLOPES
| 23 |FLUVAQUENTS-HISTOSOLS COMPLEX
| 24 |GARDINER SANDY LOAM
| 25 |GAULDY VARIANT LOAM
| 26C |GEISEL SILT LOAM, 2 TO 12 PERCENT SLOPES
| 26D |GEISEL SILT LOAM, 12 TO 30 PERCENT SLOPES
| 26E |GEISEL SILT LOAM, 30 TO 50 PERCENT SLOPES
| 27E |HARRINGTON VERY GRAVELLY LOAM, 30 TO 50 PERCENT SLOPES
| 27F |HARRINGTON VERY GRAVELLY LOAM, 50 TO 70 PERCENT SLOPES
| 28 |HECETA FINE SAND
| 29B |HECETA-WALDPORT FINE SANDS, 0 TO 7 PERCENT SLOPES
| 30D |HONEYGROVE SILTY CLAY LOAM, 3 TO 30 PERCENT SLOPES
| 30E |HONEYGROVE SILTY CLAY LOAM, 30 TO 50 PERCENT SLOPES
| 31B |JOENEY VERY FINE SANDY LOAM, 0 TO 7 PERCENT SLOPES
| 32B |JOENEY-TEMPLETON COMPLEX, 0 TO 7 PERCENT SLOPES
| 33 |KIRKENDALL SILT LOAM
| 34 |LANGLOIS SILTY CLAY LOAM
| 35 |LANGLOIS PEATY SILTY CLAY LOAM
| 36D |MCCURDY SILT LOAM, 15 TO 30 PERCENT SLOPES
| 37C |MEDA LOAM, 3 TO 15 PERCENT SLOPES
| 38F |MILBURY-BOHANNON-UMPCOOS ASSOCIATION, 50 TO 80 PERCENT SLOPES
| 39F |MILLICOMA-TEMPLETON COMPLEX, 50 TO 75 PERCENT SLOPES
| 40 |NEHALEM SILT LOAM
| 41 |NESTUCCA SILT LOAM
| 42 |NESTUCCA-WILLANCH COMPLEX
| 43D |NETARTS LOAMY FINE SAND, 2 TO 30 PERCENT SLOPES
| 44D |PREACHER-BLACHLY ASSOCIATION, 12 TO 30 PERCENT SLOPES
| 44E |PREACHER-BLACHLY ASSOCIATION, 30 TO 60 PERCENT SLOPES
| |
| 45D |PREACHER-BLACHLY-DIGGER ASSOCIATION, 12 TO 30 PERCENT SLOPES
| 45E |PREACHER-BLACHLY-DIGGER ASSOCIATION, 30 TO 60 PERCENT SLOPES
| 46D |PREACHER-BOHANNON LOAMS, 3 TO 30 PERCENT SLOPES
| 46E |PREACHER-BOHANNON LOAMS, 30 TO 60 PERCENT SLOPES
| 46F |PREACHER-BOHANNON LOAMS, 60 TO 90 PERCENT SLOPES
| 47B |PYBURN SILTY CLAY, 0 TO 8 PERCENT SLOPES
| 48 |QUOSATANA SILT LOAM
| 49E |REMOTE LOAM, 30 TO 50 PERCENT SLOPES
| 49F |REMOTE LOAM, 50 TO 75 PERCENT SLOPES
| 50D |REMOTE-DIGGER-PREACHER COMPLEX, 12 TO 30 PERCENT SLOPES
| 50E |REMOTE-DIGGER-PREACHER COMPLEX, 30 TO 50 PERCENT SLOPES
| 51D |RINEARSON SILT LOAM, 0 TO 30 PERCENT SLOPES
| 51E |RINEARSON SILT LOAM, 30 TO 50 PERCENT SLOPES
| 51F |RINEARSON SILT LOAM, 50 TO 70 PERCENT SLOPES
| 52D |SALANDER SILT LOAM, 2 TO 30 PERCENT SLOPES
| 52E |SALANDER SILT LOAM, 30 TO 50 PERCENT SLOPES
| 52F |SALANDER SILT LOAM, 50 TO 75 PERCENT SLOPES
| 53D |SERPENTANO VERY STONY LOAM, 10 TO 35 PERCENT SLOPES
| 53E |SERPENTANO VERY STONY LOAM, 35 TO 70 PERCENT SLOPES
| 54B |TEMPLETON SILT LOAM, 0 TO 7 PERCENT SLOPES
| 54D |TEMPLETON SILT LOAM, 7 TO 30 PERCENT SLOPES
| 54E |TEMPLETON SILT LOAM, 30 TO 50 PERCENT SLOPES
| 54F |TEMPLETON SILT LOAM, 50 TO 70 PERCENT SLOPES
| 55D |TEMPLETON-BULLARDS COMPLEX, 3 TO 30 PERCENT SLOPES
| 55E |TEMPLETON-BULLARDS COMPLEX, 30 TO 50 PERCENT SLOPES
| 56E |TEMPLETON-MILLICOMA COMPLEX, 12 TO 50 PERCENT SLOPES
| 57 |UDORTHENTS, LEVEL
| 58F |UMPCOOS-ROCK OUTCROP ASSOCIATION, 70 TO 99 PERCENT SLOPES
| 59D |WALDPORT FINE SAND, 0 TO 30 PERCENT SLOPES
| 59E |WALDPORT FINE SAND, 30 TO 70 PERCENT SLOPES
| 60D |WALDPORT-DUNE LAND COMPLEX, 12 TO 30 PERCENT SLOPES
| 61D |WALDPORT-HECETA FINE SANDS, 0 TO 30 PERCENT SLOPES
| 62 |WILLANCH FINE SANDY LOAM
| 63B |WINTLEY SILT LOAM, 0 TO 8 PERCENT SLOPES
| 63C |WINTLEY SILT LOAM, 8 TO 15 PERCENT SLOPES
| 63D |WINTLEY SILT LOAM, 15 TO 30 PERCENT SLOPES
| 64 |YAQUINA LOAMY FINE SAND
| 65 |ZYZZUG SILT LOAM
| 66D |ABSAQUIL-BLACHLY-MCDUFF COMPLEX, 3 TO 30 PERCENT SLOPES
| 67E |BOBSGARDEN-RILEA-EUCHRAND COMPLEX, COOL, 30 TO 60 PERCENT SOUTH SLOPES
| 67F |BOBSGARDEN-RILEA-EUCHRAND COMPLEX, COOL, 60 TO 90 PERCENT SOUTH SLOPES
| 68E |BOBSGARDEN-RILEA-EUCHRAND COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 68F |BOBSGARDEN-RILEA-EUCHRAND COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 69E |BOBSGARDEN-RILEA-ROCK OUTCROP COMPLEX, CONGLOMERATE SUBSTRATUM, 30 TO 60 PERCENT SOUTH SLOPES
| 69F |BOBSGARDEN-RILEA-ROCK OUTCROP COMPLEX, CONGLOMERATE SUBSTRATUM, 60 TO 90 PERCENT SOUTH SLOPES
| 70D |BOBSGARDEN-RILEA-YOREL COMPLEX, COOL, 0 TO 30 PERCENT SLOPES
| 71E |CEDARCAMP-SNOWCAMP-FLYCATCHER COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 72E |CEDARCAMP-SNOWCAMP-FLYCATCHER COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 73E |CEDARCAMP-SNOWCAMP-ROCK OUTCROP COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 74E |CEDARCAMP-SNOWCAMP-ROCK OUTCROP COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 75E |MCDUFF-ABSAQUIL-BLACHLY COMPLEX, 30 TO 60 PERCENT SLOPES
| 76F |RILEA-STACKYARDS-ROCK OUTCROP COMPLEX, COOL, 60 TO 90 PERCENT NORTH SLOPES
| 77D |SNOWCAMP-CEDARCAMP-FLYCATCHER COMPLEX, 0 TO 30 PERCENT SLOPES
| 78F |STACKYARDS-RILEA-EUCHRAND COMPLEX, COOL, 60 TO 90 PERCENT NORTH SLOPES
| 79F |STACKYARDS-RILEA-EUCHRAND COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 80E |STACKYARDS-RILEA-ROCK OUTCROP COMPLEX, CONGLOMERATE SUBSTRATUM, COOL, 30 TO 60 PERCENT NORTH SLOPES
| 81E |STACKYARDS-RILEA-ROCK OUTCROP COMPLEX, COOL, 30 TO 60 PERCENT NORTH SLOPES
| 82E |STACKYARDS-RILEA-YOREL COMPLEX, COOL, 30 TO 60 PERCENT NORTH SLOPES
| 83F |DIGGER-UMPCOOS-DYSTROCHREPTS COMPLEX, WARM, 60 TO 90 PERCENT SOUTH SLOPES
| 84D |ETELKA-WHOBREY-REMOTE COMPLEX, 15 TO 30 PERCENT SLOPES
| 85E |LONERANCH-HOOSKANADEN-MILLICOMA COMPLEX, 30 TO 60 PERCENT SLOPES
| 86B |NELSCOTT-DEPOE-BULLARDS COMPLEX, 0 TO 8 PERCENT SLOPES
| 87E |WHALESHEAD-REEDSPORT-MILLICOMA COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| |
| W |WATER
|________|_______________________________________________________________________________________________________
SOIL MAP LEGEND
DOUGLAS COUNTY AREA, OREGON: Detailed Soil Map Legend
_________________________________________________________________________________________________________________
| |
| Map | Soil name
| symbol |
|________|_______________________________________________________________________________________________________
| |
| 1C |ABEGG VERY GRAVELLY SANDY LOAM, 2 TO 12 PERCENT SLOPES
| 1D |ABEGG VERY GRAVELLY SANDY LOAM, 12 TO 20 PERCENT SLOPES
| 1E |ABEGG VERY GRAVELLY SANDY LOAM, 20 TO 30 PERCENT SLOPES
| 2E |ABSAQUIL-BLACHLY-MCDUFF COMPLEX, 3 TO 30 PERCENT SLOPES
| 3E |ABSAQUIL-HONEYGROVE-MCDUFF COMPLEX, 3 TO 30 PERCENT SLOPES
| 4E |ACKER GRAVELLY LOAM, 12 TO 30 PERCENT SLOPES
| 5F |ACKER-NORLING COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 6F |ACKER-NORLING COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 7F |ACKER-NORLING COMPLEX, HIGH ELEVATION, 30 TO 60 PERCENT SLOPES
| 8E |ATRING GRAVELLY LOAM, 12 TO 30 PERCENT SLOPES
| 8F |ATRING GRAVELLY LOAM, 30 TO 60 PERCENT SLOPES
| 8G |ATRING GRAVELLY LOAM, 60 TO 90 PERCENT SLOPES
| 9G |ATRING VERY GRAVELLY LOAM, HIGH ELEVATION, 60 TO 90 PERCENT SLOPES
| 10E |ATRING-LARMINE COMPLEX, 12 TO 30 PERCENT SLOPES
| 10F |ATRING-LARMINE COMPLEX, 30 TO 60 PERCENT SLOPES
| 10G |ATRING-LARMINE COMPLEX, 60 TO 90 PERCENT SLOPES
| 11F |ATRING-LARMINE-ROCK OUTCROP COMPLEX, 30 TO 60 PERCENT SLOPES
| 11G |ATRING-LARMINE-ROCK OUTCROP COMPLEX, 60 TO 90 PERCENT SLOPES
| 12F |ATRING-VERMISA COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 12G |ATRING-VERMISA COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 13G |ATRING-VERMISA COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 14A |BANNING LOAM, 0 TO 3 PERCENT SLOPES
| 14C |BANNING LOAM, 3 TO 12 PERCENT SLOPES
| 14D |BANNING LOAM, 12 TO 20 PERCENT SLOPES
| 15A |BASHAW CLAY, 0 TO 1 PERCENT SLOPES
| 16C |BATEMAN SILT LOAM, 3 TO 12 PERCENT SLOPES
| 16E |BATEMAN SILT LOAM, 12 TO 30 PERCENT SLOPES
| 16F |BATEMAN SILT LOAM, 30 TO 60 PERCENT SLOPES
| 17 |BEACHES
| 18E |BEAL LOAM, 12 TO 30 PERCENT SLOPES
| 19F |BEEKMAN-VERMISA COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 19G |BEEKMAN-VERMISA COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 20G |BEEKMAN-VERMISA COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 21C |BELLPINE SILT LOAM, 3 TO 12 PERCENT SLOPES
| 21E |BELLPINE SILT LOAM, 12 TO 30 PERCENT SLOPES
| 21F |BELLPINE SILT LOAM, 30 TO 60 PERCENT SLOPES
| 22C |BELLPINE CLAY LOAM, 3 TO 12 PERCENT SLOPES
| 22E |BELLPINE CLAY LOAM, 12 TO 30 PERCENT SLOPES
| 23F |BELLPINE-WINDYGAP COMPLEX, 30 TO 60 PERCENT SLOPES
| 24C |BICKFORD SILT LOAM, 3 TO 12 PERCENT SLOPES
| 25C |BIGDUTCH GRAVELLY LOAM, 3 TO 12 PERCENT SLOPES
| 25E |BIGDUTCH GRAVELLY LOAM, 12 TO 30 PERCENT SLOPES
| 25F |BIGDUTCH GRAVELLY LOAM, 30 TO 60 PERCENT SLOPES
| 26E |BLACHLY SILTY CLAY LOAM, 3 TO 30 PERCENT SLOPES
| 26F |BLACHLY SILTY CLAY LOAM, 30 TO 60 PERCENT SLOPES
| 27G |BOHANNON-PREACHER-DAMEWOOD COMPLEX, 60 TO 90 PERCENT SLOPES
| 28A |BRAGTON MUCK, 0 TO 1 PERCENT SLOPES
| 29A |BRAND SILTY CLAY LOAM, 0 TO 3 PERCENT SLOPES
| 30D |BUCKEYE LOAM, 2 TO 20 PERCENT SLOPES
| 30E |BUCKEYE LOAM, 20 TO 30 PERCENT SLOPES
| 30F |BUCKEYE LOAM, 30 TO 60 PERCENT SLOPES
| 31E |BUCKSHOT SANDY LOAM, 3 TO 30 PERCENT SLOPES
| 32F |BUCKSHOT SANDY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 33G |BUCKSHOT-STINGER COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 34A |CAMAS-NEWBERG COMPLEX, 0 TO 3 PERCENT SLOPES
| 35A |CENTRAL POINT LOAM, 0 TO 3 PERCENT SLOPES
| 36E |CHAMATE EXTREMELY GRAVELLY LOAM, 3 TO 30 PERCENT SLOPES
| 36F |CHAMATE EXTREMELY GRAVELLY LOAM, 30 TO 60 PERCENT SLOPES
| 37A |CHAPMAN-CHEHALIS COMPLEX, 0 TO 3 PERCENT SLOPES
| 38F |CHIMNEYROCK VERY GRAVELLY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 38G |CHIMNEYROCK VERY GRAVELLY LOAM, 60 TO 90 PERCENT NORTH SLOPES
| 39F |CHIMNEYROCK VERY GRAVELLY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 39G |CHIMNEYROCK VERY GRAVELLY LOAM, 60 TO 90 PERCENT SOUTH SLOPES
| |
| 40F |CLEVESCOVE-SALANDER COMPLEX, 30 TO 70 PERCENT SLOPES
| 41E |CLIMAX CLAY, 12 TO 30 PERCENT SLOPES
| 41F |CLIMAX CLAY, 30 TO 60 PERCENT SLOPES
| 42B |COBURG SILTY CLAY LOAM, 0 TO 5 PERCENT SLOPES
| 43A |COBURG SILTY CLAY LOAM, FLOODED, 0 TO 3 PERCENT SLOPES
| 44A |CONSER SILTY CLAY LOAM, 0 TO 3 PERCENT SLOPES
| 45A |COQUILLE SILT LOAM, 0 TO 1 PERCENT SLOPES
| 46A |COQUILLE SILT LOAM, PROTECTED, 0 TO 1 PERCENT SLOPES
| 47E |CRATER LAKE SANDY LOAM, 3 TO 30 PERCENT SLOPES
| 47F |CRATER LAKE SANDY LOAM, 30 TO 60 PERCENT SLOPES
| 48C |CURTIN CLAY, 3 TO 12 PERCENT SLOPES
| 48D |CURTIN CLAY, 12 TO 20 PERCENT SLOPES
| 49F |DAMEWOOD-BOHANNON-UMPCOOS COMPLEX, 30 TO 60 PERCENT SLOPES
| 49G |DAMEWOOD-BOHANNON-UMPCOOS COMPLEX, 60 TO 90 PERCENT SLOPES
| 50E |DARBY SILTY CLAY LOAM, 12 TO 30 PERCENT SLOPES
| 50F |DARBY SILTY CLAY LOAM, 30 TO 60 PERCENT SLOPES
| 51C |DEBENGER-BRADER COMPLEX, 2 TO 12 PERCENT SLOPES
| 51E |DEBENGER-BRADER COMPLEX, 12 TO 30 PERCENT SLOPES
| 51F |DEBENGER-BRADER COMPLEX, 30 TO 60 PERCENT SLOPES
| 52G |DICECREEK-BELLPINE-WINDYGAP COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 53E |DICKERSON LOAM, 3 TO 30 PERCENT SLOPES
| 53G |DICKERSON LOAM, 30 TO 90 PERCENT SLOPES
| 54E |DICKERSON-ROCK OUTCROP COMPLEX, 3 TO 30 PERCENT SLOPES
| 54G |DICKERSON-ROCK OUTCROP COMPLEX, 30 TO 90 PERCENT SLOPES
| 55G |DICKERSON-ROCK OUTCROP-CHIMNEYROCK COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 56G |DICKERSON-ROCK OUTCROP-CHIMNEYROCK COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 57E |DIGGER-BOHANNON COMPLEX, 3 TO 30 PERCENT SLOPES
| 57F |DIGGER-BOHANNON COMPLEX, 30 TO 60 PERCENT SLOPES
| 58G |DIGGER-BOHANNON-UMPCOOS COMPLEX, 60 TO 90 PERCENT SLOPES
| 59G |DIGGER-PREACHER COMPLEX, 60 TO 90 PERCENT SLOPES
| 60F |DIGGER-UMPCOOS-ROCK OUTCROP COMPLEX, 30 TO 60 PERCENT SLOPES
| 60G |DIGGER-UMPCOOS-ROCK OUTCROP COMPLEX, 60 TO 90 PERCENT SLOPES
| 61C |DIXONVILLE SILTY CLAY LOAM, 3 TO 12 PERCENT SLOPES
| 61E |DIXONVILLE SILTY CLAY LOAM, 12 TO 30 PERCENT SLOPES
| 62F |DIXONVILLE SILTY CLAY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 63F |DIXONVILLE SILTY CLAY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 64F |DOMPIER-ZING-BEAL COMPLEX, 30 TO 60 PERCENT SLOPES
| 65F |DUBAKELLA VERY STONY CLAY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 66F |DUBAKELLA VERY STONY CLAY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 67E |DUBAKELLA-PEARSOLL COMPLEX, 5 TO 30 PERCENT SLOPES
| 68F |DUBAKELLA-PEARSOLL COMPLEX, 30 TO 70 PERCENT NORTH SLOPES
| 69C |DUMONT GRAVELLY LOAM, 2 TO 12 PERCENT SLOPES
| 69E |DUMONT GRAVELLY LOAM, 12 TO 30 PERCENT SLOPES
| 70F |DUMONT GRAVELLY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 71F |DUMONT GRAVELLY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 72E |DUMONT GRAVELLY LOAM, GRANITIC SUBSTRATUM, 3 TO 30 PERCENT SLOPES
| 73E |DUMONT-ZING COMPLEX, 2 TO 30 PERCENT SLOPES
| 74 |DUNELAND
| 75C |DUPEE SILTY CLAY LOAM, 3 TO 12 PERCENT SLOPES
| 75E |DUPEE SILTY CLAY LOAM, 12 TO 30 PERCENT SLOPES
| 76E |EDENBOWER CLAY, 3 TO 30 PERCENT SLOPES
| 77D |EIGHTLAR VERY GRAVELLY SILTY CLAY LOAM, 5 TO 20 PERCENT SLOPES
| 78A |EVANS LOAM, 0 TO 3 PERCENT SLOPES
| 79E |FERNHAVEN GRAVELLY LOAM, 3 TO 30 PERCENT SLOPES
| 79F |FERNHAVEN GRAVELLY LOAM, 30 TO 50 PERCENT SLOPES
| 79G |FERNHAVEN GRAVELLY LOAM, 50 TO 75 PERCENT SLOPES
| 80E |FERNHAVEN-DIGGER COMPLEX, 3 TO 30 PERCENT SLOPES
| 80F |FERNHAVEN-DIGGER COMPLEX, 30 TO 60 PERCENT SLOPES
| 81A |FOEHLIN GRAVELLY LOAM, 0 TO 3 PERCENT SLOPES
| 81C |FOEHLIN GRAVELLY LOAM, 3 TO 12 PERCENT SLOPES
| 82C |FORDICE VERY COBBLY LOAM, 0 TO 12 PERCENT SLOPES
| 83A |GLIDE FINE SANDY LOAM, 0 TO 3 PERCENT SLOPES
| 84E |GRAVECREEK GRAVELLY LOAM, 12 TO 30 PERCENT SLOPES
| |
| 85F |GRAVECREEK GRAVELLY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 85G |GRAVECREEK GRAVELLY LOAM, 60 TO 80 PERCENT NORTH SLOPES
| 86F |GRAVECREEK GRAVELLY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 86G |GRAVECREEK GRAVELLY LOAM, 60 TO 80 PERCENT SOUTH SLOPES
| 87E |GREENGULCH-CEDARGROVE COMPLEX, 3 TO 30 PERCENT SLOPES
| 88F |GREENGULCH-CEDARGROVE COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 89F |GREENGULCH-CEDARGROVE COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 90E |GUSTIN-ORFORD COMPLEX, 3 TO 30 PERCENT SLOPES
| 91G |HARRINGTON-KILCHIS-ROCK OUTCROP COMPLEX, 60 TO 100 PERCENT SLOPES
| 92A |HECETA FINE SAND, 0 TO 2 PERCENT SLOPES
| 93C |HECETA-WALDPORT COMPLEX, 0 TO 12 PERCENT SLOPES
| 94E |HEMCROSS-KLISTAN COMPLEX, 3 TO 30 PERCENT SLOPES
| 95F |HILLTISH VERY GRAVELLY SANDY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 95G |HILLTISH VERY GRAVELLY SANDY LOAM, 60 TO 90 PERCENT NORTH SLOPES
| 96F |HILLTISH VERY GRAVELLY SANDY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 97E |HONEYGROVE GRAVELLY CLAY LOAM, 3 TO 30 PERCENT SLOPES
| 97F |HONEYGROVE GRAVELLY CLAY LOAM, 30 TO 60 PERCENT SLOPES
| 98E |HONEYGROVE-GUSTIN COMPLEX, 3 TO 30 PERCENT SLOPES
| 99E |HONEYGROVE-PEAVINE COMPLEX, 3 TO 30 PERCENT SLOPES
| 99F |HONEYGROVE-PEAVINE COMPLEX, 30 TO 60 PERCENT SLOPES
| 100E |HONEYGROVE-SHIVIGNY COMPLEX, 3 TO 30 PERCENT SLOPES
| 101F |HONEYGROVE-SHIVIGNY-GUSTIN COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 102F |HONEYGROVE-SHIVIGNY-GUSTIN COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 103G |HUMMINGTON VERY GRAVELLY LOAM, 60 TO 90 PERCENT NORTH SLOPES
| 104F |ILLAHEE-MELLOWMOON-SCAREDMAN COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 105F |ILLAHEE-MELLOWMOON-SCAREDMAN COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 106G |ILLAHEE-ROCK OUTCROP COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 107G |ILLAHEE-SCAREDMAN COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 108G |ILLAHEE-SCAREDMAN COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 109E |JAYAR VERY GRAVELLY LOAM, 12 TO 30 PERCENT SLOPES
| 110F |JAYAR VERY GRAVELLY LOAM, 30 TO 70 PERCENT NORTH SLOPES
| 111F |JAYAR VERY GRAVELLY LOAM, 30 TO 70 PERCENT SOUTH SLOPES
| 112A |JIMBO-HAFLINGER COMPLEX, 0 TO 3 PERCENT SLOPES
| 113C |JORY SILTY CLAY LOAM, 2 TO 12 PERCENT SLOPES
| 113D |JORY SILTY CLAY LOAM, 12 TO 20 PERCENT SLOPES
| 113E |JORY SILTY CLAY LOAM, 20 TO 30 PERCENT SLOPES
| 113F |JORY SILTY CLAY LOAM, 30 TO 60 PERCENT SLOPES
| 114F |JORY-RITNER COMPLEX, 30 TO 60 PERCENT SLOPES
| 115C |JOSEPHINE GRAVELLY LOAM, 3 TO 12 PERCENT SLOPES
| 115E |JOSEPHINE GRAVELLY LOAM, 12 TO 30 PERCENT SLOPES
| 116F |JOSEPHINE-SPEAKER COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 117F |JOSEPHINE-SPEAKER COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 118E |KANID VERY GRAVELLY LOAM, 12 TO 30 PERCENT SLOPES
| 118F |KANID VERY GRAVELLY LOAM, 30 TO 70 PERCENT SLOPES
| 119F |KANID-ATRING COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 119G |KANID-ATRING COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 120G |KANID-ATRING COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 121G |KILCHIS-HARSLOW-ROCK OUTCROP COMPLEX, 60 TO 100 PERCENT SOUTH SLOPES
| 122E |KINNEY-KLICKITAT COMPLEX, 3 TO 30 PERCENT SLOPES
| 123A |KIRKENDALL-NEKOMA COMPLEX, 0 TO 3 PERCENT SLOPES
| 124F |KLICKITAT-HARRINGTON COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 124G |KLICKITAT-HARRINGTON COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 125G |KLICKITAT-HARRINGTON COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 126F |KLICKITAT-KINNEY COMPLEX, 30 TO 60 PERCENT SLOPES
| 127F |KLISTAN-HEMCROSS COMPLEX, 30 TO 60 PERCENT SLOPES
| 128F |LADERLY VERY GRAVELLY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 129G |LADERLY-ROMANOSE COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 130E |LEMPIRA GRAVELLY LOAM, 3 TO 30 PERCENT SLOPES
| 131F |LEMPIRA-ILLAHEE COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 132E |LEOPOLD CLAY LOAM, 3 TO 30 PERCENT SLOPES
| 132F |LEOPOLD CLAY LOAM, 30 TO 60 PERCENT SLOPES
| 133E |LETTIA GRAVELLY LOAM, 3 TO 30 PERCENT SLOPES
| |
| 134F |LETTIA GRAVELLY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 135F |LETTIA GRAVELLY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 136E |LETTIA-BEAL-ZING COMPLEX, 3 TO 30 PERCENT SLOPES
| 137F |LETTIA-BEAL-ZING COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 138F |LETTIA-BEAL-ZING COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 139F |LETTIA-TISHAR COMPLEX, 30 TO 70 PERCENT NORTH SLOPES
| 140F |LETTIA-TISHAR COMPLEX, 30 TO 70 PERCENT SOUTH SLOPES
| 141C |LINT SILT LOAM, 0 TO 12 PERCENT SLOPES
| 141D |LINT SILT LOAM, 12 TO 20 PERCENT SLOPES
| 142G |LITTLESAND-NONPAREIL-ROCK OUTCROP COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 143G |LITTLESAND-ROSEHAVEN-ATRING COMPLEX, 60 TO 90 PERCENT SLOPES
| 144A |MALABON SILTY CLAY LOAM, 0 TO 3 PERCENT SLOPES
| 145A |MALABON SILTY CLAY LOAM, FLOODED, 0 TO 3 PERCENT SLOPES
| 146E |MCCOMAS VERY GRAVELLY LOAM, 3 TO 30 PERCENT SLOPES
| 147F |MCDUFF-ABSAQUIL-BLACHLY COMPLEX, 30 TO 60 PERCENT SLOPES
| 148F |MCDUFF-ABSAQUIL-HONEYGROVE COMPLEX, 30 TO 60 PERCENT SLOPES
| 149E |MCMULLIN-RESTON COMPLEX, 3 TO 30 PERCENT SLOPES
| 149F |MCMULLIN-RESTON COMPLEX, 30 TO 75 PERCENT SLOPES
| 150F |MCMULLIN-RESTON-ROCK OUTCROP COMPLEX, 30 TO 75 PERCENT SLOPES
| 151A |MCNAB CLAY LOAM, 0 TO 3 PERCENT SLOPES
| 152E |MCNAB-WINDYGAP COMPLEX, 3 TO 30 PERCENT SLOPES
| 153D |MEDA LOAM, 2 TO 20 PERCENT SLOPES
| 154B |MEDFORD CLAY LOAM, 0 TO 7 PERCENT SLOPES
| 154C |MEDFORD CLAY LOAM, 7 TO 15 PERCENT SLOPES
| 155E |MELLOWMOON-ILLAHEE COMPLEX, 3 TO 30 PERCENT SLOPES
| 159C |NEKIA SILTY CLAY LOAM, 2 TO 12 PERCENT SLOPES
| 159D |NEKIA SILTY CLAY LOAM, 12 TO 20 PERCENT SLOPES
| 159E |NEKIA SILTY CLAY LOAM, 20 TO 30 PERCENT SLOPES
| 160E |NEKIA-JORY COMPLEX, 30 TO 60 PERCENT SLOPES
| 161A |NEKOMA-GARDINER COMPLEX, 0 TO 3 PERCENT SLOPES
| 162A |NESTUCCA SILT LOAM, 0 TO 3 PERCENT SLOPES
| 163C |NETARTS FINE SAND, 2 TO 12 PERCENT SLOPES
| 163E |NETARTS FINE SAND, 12 TO 30 PERCENT SLOPES
| 164A |NEWBERG FINE SANDY LOAM, 0 TO 3 PERCENT SLOPES
| 165A |NEWBERG LOAMY SAND, 0 TO 3 PERCENT SLOPES
| 166C |NONPAREIL LOAM, 3 TO 12 PERCENT SLOPES
| 166E |NONPAREIL LOAM, 12 TO 30 PERCENT SLOPES
| 167G |NONPAREIL LOAM, 60 TO 90 PERCENT NORTH SLOPES
| 168G |NONPAREIL LOAM, 60 TO 90 PERCENT SOUTH SLOPES
| 169C |NONPAREIL-OAKLAND COMPLEX, 3 TO 12 PERCENT SLOPES
| 169E |NONPAREIL-OAKLAND COMPLEX, 12 TO 30 PERCENT SLOPES
| 169F |NONPAREIL-OAKLAND COMPLEX, 30 TO 60 PERCENT SLOPES
| 170C |OAKLAND SILT LOAM, 3 TO 12 PERCENT SLOPES
| 170D |OAKLAND SILT LOAM, 12 TO 20 PERCENT SLOPES
| 170E |OAKLAND SILT LOAM, 20 TO 30 PERCENT SLOPES
| 171F |OAKLAND SILT LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 172F |OAKLAND SILT LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 173E |OAKLAND-DUPEE COMPLEX, 12 TO 30 PERCENT SLOPES
| 174E |OAKLAND-NONPAREIL-SUTHERLIN COMPLEX, 12 TO 30 PERCENT SLOPES
| 174F |OAKLAND-NONPAREIL-SUTHERLIN COMPLEX, 30 TO 60 PERCENT SLOPES
| 175E |OAKLAND-SUTHERLIN COMPLEX, 12 TO 30 PERCENT SLOPES
| 176F |ONEONTA-HUMMINGTON COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 177F |ONEONTA-HUMMINGTON COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 178E |ONEONTA-KEEL COMPLEX, 3 TO 30 PERCENT SLOPES
| 179E |ORFORD GRAVELLY SILT LOAM, 3 TO 30 PERCENT SLOPES
| 179F |ORFORD GRAVELLY SILT LOAM, 30 TO 60 PERCENT SLOPES
| 180E |ORFORD GRAVELLY LOAM, 3 TO 30 PERCENT SLOPES
| 180F |ORFORD GRAVELLY LOAM, 30 TO 60 PERCENT SLOPES
| 181F |ORFORD-GUSTIN COMPLEX, 30 TO 60 PERCENT SLOPES
| 182F |ORFORD-MCDUFF COMPLEX, 30 TO 60 PERCENT SLOPES
| |
| 183B |PACKARD GRAVELLY LOAM, 0 TO 5 PERCENT SLOPES
| 184A |PACKARD GRAVELLY LOAM, FLOODED, 0 TO 3 PERCENT SLOPES
| 185D |PANTHER SILTY CLAY LOAM, 4 TO 20 PERCENT SLOPES
| 186F |PEARSOLL-DUBAKELLA COMPLEX, 30 TO 70 PERCENT SOUTH SLOPES
| 187E |PEEL CLAY LOAM, 3 TO 30 PERCENT SLOPES
| 188D |PENGRA SILT LOAM, 2 TO 20 PERCENT SLOPES
| 188E |PENGRA SILT LOAM, 20 TO 30 PERCENT SLOPES
| 189E |PHILOMATH-DIXONVILLE COMPLEX, 3 TO 30 PERCENT SLOPES
| 189F |PHILOMATH-DIXONVILLE COMPLEX, 30 TO 70 PERCENT SLOPES
| 190E |PHILOMATH-EDENBOWER COMPLEX, 12 TO 30 PERCENT SLOPES
| 190F |PHILOMATH-EDENBOWER COMPLEX, 30 TO 60 PERCENT SLOPES
| 191 |PITS
| 192E |POLLARD GRAVELLY LOAM, 3 TO 30 PERCENT SLOPES
| 193F |POLLARD GRAVELLY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 194F |POLLARD GRAVELLY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 195E |PREACHER LOAM, 0 TO 30 PERCENT SLOPES
| 195F |PREACHER LOAM, 30 TO 50 PERCENT SLOPES
| 195G |PREACHER LOAM, 50 TO 75 PERCENT SLOPES
| 196E |PREACHER-BLACHLY COMPLEX, 12 TO 30 PERCENT SLOPES
| 197E |PREACHER-BOHANNON COMPLEX, 3 TO 30 PERCENT SLOPES
| 197F |PREACHER-BOHANNON COMPLEX, 30 TO 60 PERCENT SLOPES
| 198F |PREACHER-BOHANNON-BLACHLY COMPLEX, 30 TO 70 PERCENT SLOPES
| 199G |PREACHER-BOHANNON-DIGGER COMPLEX, 60 TO 90 PERCENT SLOPES
| 200F |PREACHER-BOHANNON-XANADU COMPLEX, 30 TO 60 PERCENT SLOPES
| 201A |QUOSATANA SILT LOAM, 0 TO 3 PERCENT SLOPES
| 202B |REDBELL SILT LOAM, 0 TO 5 PERCENT SLOPES
| 203F |REEDSPORT-MILLICOMA COMPLEX, 30 TO 60 PERCENT SLOPES
| 204G |REMOTE-DIGGER COMPLEX, 60 TO 90 PERCENT SLOPES
| 205E |RITNER GRAVELLY SILTY CLAY LOAM, 12 TO 30 PERCENT SLOPES
| 206F |RITNER GRAVELLY SILTY CLAY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 207G |RITNER GRAVELLY SILTY CLAY LOAM, 60 TO 90 PERCENT NORTH SLOPES
| 208G |RITNER-JORY COMPLEX, 60 TO 90 PERCENT SLOPES
| 209F |RITNER-SAHAPTIN COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 209G |RITNER-SAHAPTIN COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 210 |RIVERWASH
| 211 |ROCK OUTCROP
| 212G |ROCK OUTCROP-UMPCOOS COMPLEX, 60 TO 110 PERCENT SLOPES
| 213G |ROMANOSE-LADERLY COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 214A |ROSEBURG LOAM, 0 TO 3 PERCENT SLOPES
| 215C |ROSEHAVEN LOAM, 3 TO 12 PERCENT SLOPES
| 215E |ROSEHAVEN LOAM, 12 TO 30 PERCENT SLOPES
| 215F |ROSEHAVEN LOAM, 30 TO 60 PERCENT SLOPES
| 216E |ROSEHAVEN-ATRING COMPLEX, 12 TO 30 PERCENT SLOPES
| 216F |ROSEHAVEN-ATRING COMPLEX, 30 TO 60 PERCENT SLOPES
| 217E |SALANDER SILT LOAM, 12 TO 30 PERCENT SLOPES
| 217F |SALANDER SILT LOAM, 30 TO 60 PERCENT SLOPES
| 218G |SCAREDMAN-LIMPY-ROCK OUTCROP COMPLEX, 60 TO 100 PERCENT SOUTH SLOPES
| 219E |SHARPSHOOTER LOAM, 3 TO 30 PERCENT SLOPES
| 220F |SHARPSHOOTER LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 220G |SHARPSHOOTER LOAM, 60 TO 90 PERCENT NORTH SLOPES
| 221F |SHARPSHOOTER LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 221G |SHARPSHOOTER LOAM, 60 TO 90 PERCENT SOUTH SLOPES
| 222F |SHIVIGNY-HONEYGROVE COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 222G |SHIVIGNY-HONEYGROVE COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 223F |SHIVIGNY-HONEYGROVE COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 224B |SIBOLD FINE SANDY LOAM, 0 TO 5 PERCENT SLOPES
| 225D |SPEAKER LOAM, 2 TO 20 PERCENT SLOPES
| 225E |SPEAKER LOAM, 20 TO 30 PERCENT SLOPES
| 226F |SPEAKER LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 227F |SPEAKER LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 228G |SPEAKER-BEEKMAN-JOSEPHINE COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 229G |SPEAKER-BEEKMAN-NONPAREIL COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 230E |SPEAKER-NONPAREIL COMPLEX, 3 TO 30 PERCENT SLOPES
| |
| 230F |SPEAKER-NONPAREIL COMPLEX, 30 TO 60 PERCENT SLOPES
| 231G |STACKYARDS EXTREMELY GRAVELLY LOAM, 60 TO 90 PERCENT NORTH SLOPES
| 232G |STEINMETZ-SITKUM COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 233G |STEINMETZ-SITKUM COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 234C |STOCKEL FINE SANDY LOAM, 3 TO 12 PERCENT SLOPES
| 235C |SUTHERLIN SILT LOAM, 3 TO 12 PERCENT SLOPES
| 235D |SUTHERLIN SILT LOAM, 12 TO 20 PERCENT SLOPES
| 235E |SUTHERLIN SILT LOAM, 20 TO 30 PERCENT SLOPES
| 235F |SUTHERLIN SILT LOAM, 30 TO 50 PERCENT SLOPES
| 236C |SUTHERLIN-OAKLAND COMPLEX, 3 TO 12 PERCENT SLOPES
| 237E |SVENSEN LOAM, 3 TO 30 PERCENT SLOPES
| 237F |SVENSEN LOAM, 30 TO 60 PERCENT SLOPES
| 238F |SVENSEN-MILLICOMA-REEDSPORT COMPLEX, 35 TO 75 PERCENT SLOPES
| 239E |SWEETBRIAR SILTY CLAY LOAM, 3 TO 30 PERCENT SLOPES
| 240F |SWEETBRIAR SILTY CLAY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 241F |SWEETBRIAR SITLY CLAY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 242F |TEMPLETON-MILLICOMA COMPLEX, 30 TO 50 PERCENT SLOPES
| 242G |TEMPLETON-MILLICOMA COMPLEX, 50 TO 75 PERCENT SLOPES
| 243G |TETHRICK-SISKIYOU COMPLEX, 60 TO 90 PERCENT NORTH SLOPES
| 244G |TETHRICK-SISKIYOU COMPLEX, 60 TO 90 PERCENT SOUTH SLOPES
| 246E |THISTLEBURN-ILLAHEE-TELEMON COMPLEX, 3 TO 30 PERCENT SLOPES
| 246F |THISTLEBURN-ILLAHEE-TELEMON COMPLEX, 30 TO 60 PERCENT SLOPES
| 247F |THREEFORKS LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 247G |THREEFORKS LOAM, 60 TO 90 PERCENT NORTH SLOPES
| 248G |THREEFORKS LOAM, 60 TO 90 PERCENT SOUTH SLOPES
| 249E |TISHAR-JORY COMPLEX, 3 TO 30 PERCENT SLOPES
| 249F |TISHAR-JORY COMPLEX, 30 TO 60 PERCENT SLOPES
| 250E |TISHAR-MCGINNIS COMPLEX, 3 TO 30 PERCENT SLOPES
| 251F |TISHAR-MCGINNIS COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 251G |TISHAR-MCGINNIS COMPLEX, 60 TO 80 PERCENT NORTH SLOPES
| 252F |TISHAR-MCGINNIS COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 252G |TISHAR-MCGINNIS COMPLEX, 60 TO 80 PERCENT SOUTH SLOPES
| 253F |UMPCOOS-ROCK OUTCROP-DAMEWOOD COMPLEX, 30 TO 60 PERCENT SLOPES
| 253G |UMPCOOS-ROCK OUTCROP-DAMEWOOD COMPLEX, 60 TO 90 PERCENT SLOPES
| 254G |VENA-ROCK OUTCROP COMPLEX, 60 TO 100 PERCENT SLOPES
| 255C |VENETA LOAM, 0 TO 12 PERCENT SLOPES
| 255D |VENETA LOAM, 12 TO 20 PERCENT SLOPES
| 256G |VERMISA-ROCK OUTCROP COMPLEX, 60 TO 100 PERCENT SOUTH SLOPES
| 257A |WALDO SILTY CLAY LOAM, 0 TO 3 PERCENT SLOPES
| 258C |WALDPORT FINE SAND, 0 TO 12 PERCENT SLOPES
| 258E |WALDPORT FINE SAND, 12 TO 30 PERCENT SLOPES
| 258F |WALDPORT FINE SAND, 30 TO 70 PERCENT SLOPES
| 259E |WALDPORT FINE SAND, THIN SURFACE, 0 TO 30 PERCENT SLOPES
| 260A |WASSON LOAM, 0 TO 3 PERCENT SLOPES
| 261A |WILLANCH FINE SANDY LOAM, 0 TO 3 PERCENT SLOPES
| 262C |WINDYGAP SILT LOAM, 2 TO 12 PERCENT SLOPES
| 262E |WINDYGAP SILT LOAM, 12 TO 30 PERCENT SLOPES
| 262F |WINDYGAP SILT LOAM, 30 TO 60 PERCENT SLOPES
| 263C |WINDYGAP CLAY LOAM, 2 TO 12 PERCENT SLOPES
| 263E |WINDYGAP CLAY LOAM, 12 TO 30 PERCENT SLOPES
| 264E |WINDYGAP-BELLPINE COMPLEX, 12 TO 30 PERCENT SLOPES
| 265F |WINDYGAP-BELLPINE COMPLEX, 30 TO 60 PERCENT NORTH SLOPES
| 266F |WINDYGAP-BELLPINE COMPLEX, 30 TO 60 PERCENT SOUTH SLOPES
| 267C |WINTLEY SILT LOAM, 0 TO 12 PERCENT SLOPES
| 268E |WOLFPEAK SANDY LOAM, 3 TO 30 PERCENT SLOPES
| 269F |WOLFPEAK SANDY LOAM, 30 TO 60 PERCENT NORTH SLOPES
| 270F |WOLFPEAK SANDY LOAM, 30 TO 60 PERCENT SOUTH SLOPES
| 271E |WOLFPEAK-BEAL-ZING COMPLEX, 3 TO 30 PERCENT SLOPES
| 272E |XANADU GRAVELLY LOAM, 3 TO 30 PERCENT SLOPES
| 272F |XANADU GRAVELLY LOAM, 30 TO 60 PERCENT SLOPES
| 273G |XERORTHENTS-ROCK OUTCROP COMPLEX, 30 TO 80 PERCENT SLOPES
| 274A |YACHATS FINE SANDY LOAM, 0 TO 3 PERCENT SLOPES
| |
| 275D |YONCALLA SILTY CLAY LOAM, 2 TO 20 PERCENT SLOPES
| 275E |YONCALLA SILTY CLAY LOAM, 20 TO 30 PERCENT SLOPES
| 276E |ZALEA-PYRADY COMPLEX, 15 TO 30 PERCENT SLOPES
| 277E |ZING LOAM, 0 TO 30 PERCENT SLOPES
| 278E |ZING-LETTIA COMPLEX, 3 TO 30 PERCENT SLOPES
| 279E |ZING-SWEETBRIAR COMPLEX, 3 TO 30 PERCENT SLOPES
| 279F |ZING-SWEETBRIAR COMPLEX, 30 TO 60 PERCENT SLOPES
| AD |ACCESS DENIED
| W |WATER
|________|_______________________________________________________________________________________________________
Distribution Information
Section Index
Distributor:
Contact Information:
Contact Organization Primary:
Contact Organization: Regional Ecosystem Office
Contact Person: Chris Hamilton (Data Steward)
Contact Position: GIS Administrator
Contact Address:
Address Type: mailing and physical address
Address: 333 SW 1st, P.O. Box 3623
City: Portland
State or Province: Oregon
Postal Code: 97208
Country: USA
Contact Voice Telephone: (503) 326-7133
Resource Description: Soils Coquille Watershed
Distribution Liability:
THE DATA AND ASSOCIATED DATA FILES ON THIS CD-ROM ARE
PROVIDED ""AS IS,"" WITHOUT WARRANTY TO THEIR PERFORMANCE, MERCHANTABLE
STATE, OR FITNESS FOR ANY PARTICULAR PURPOSE. THE ENTIRE RISK
ASSOCIATED WITH THE RESULTS AND PERFORMANCES OF THE DATA IS ASSUMED
BY THE USER. THIS DATA IS NOT FOR NAVIGATIONAL OR LEGAL PURPOSES.
Custom Order Process: Contact Distributor or download from http://www.or.blm.gov:80/gis/gsd/complete.html
Available Time Period:
Time Period Information:
Single Date/Time:
Calendar Date:
Time of Day: Unknown
Metadata Reference Information
Section Index
Metadata Date: 1/1/2000
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:
Contact Information:
Contact Organization Primary:
Contact Organization:
Oregon Ocean Coastal Management Program - Department of
Land Conservation and Development
Contact Person: Tanya Haddad
Contact Position: DEMIS Coordinator
Contact Address:
Address Type: mailing and physical address
Address: 800 NE Oregon Street #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA
Contact Voice Telephone: 503-731-4065 x30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
SMMS Metadata report generated 3/27/2002
