Passable and Impassable Barriers to Fish Passage in the Sixes Watershed, ODFW, 2002

Citation:

Citation Information:

Originator: Oregon Department of Fish and Wildlife, Susan Brodeur, Jennifer Lloyd, Jon Bowers
Publication Date: 2002
Title: Passable and Impassable Barriers to Fish Passage in the Sixes Watershed, ODFW, 2002
Geospatial Data Presentation Form: vector digital data
Publication Information:

Publication Place: Portland, OR
Publisher: Oregon Department of Fish and Wildlife

Online Linkage: http://rainbow.dfw.state.or.us/nrimp/information/fishbarrierdata.htm

Description:

Abstract:
This dataset contains both passable and impassable barriers to anadromous salmonid migration for the state of Oregon. Most records occur in the western
portion of the state. Information on the impassble or partially passable barrier
can be found in the related table: bar_pts.fb.
Dams are found in a separate dataset.

Purpose:
To identify geographic locations of barriers that may impede or block the migration of anadromous salmonids. This data is used to further refine
the anadromous salmonid distribution datasets.

Supplemental Information:
Procedures_Used The ODFW barrier database has been developed over the past several
years primarily through the compilation of data from published reports.
Additional records have been added based on input from ODFW district
biologists based on their best professional judgement of the type, location
and height of barriers. The data were compiled in database format with
event table compatibility. Stream route identifiers (llid) and a river mile
locational measure of the barrier were recorded so that a GIS point
dataset could be easily created. The event records were converted into
Arc Info coverage format with the EVENTSOURCE and EVENTPOINT
commands.

Revisions:
This is the second version of barrier data in GIS format to be released by
ODFW.

Reviews_Applied_to_Data:
All barriers contained in this dataset have been reviewed by ODFW district
biologist staff at least once.

Related_Spatial_and_Tabular_Data_Sets:
The fish barrier table tracks position and blockage extent of each barrier
relative to species specific distribution. Name = Bar_pts.fb

References_Cited:
See record level Reference ID. The author(s), title, date of publication, etc...
can be found using the Ref_ID to lookup the document at the StreamNet
library at: http://www.fishlib.org/dbtw-wpd/textbase/local.htm We will likely
be posting a Reference table on the NRIMP web site in the near future.

20040218 For purposes of Oregon Coastal Atlas project this data was reprojected and clipped to basin boundaries. Please refer to originators for original data and further information regarding this data.

Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 2002
Time of Day: Unknown

Currentness Reference: Incomplete at time of publishing (2002)

Status:

Progress: In work
Maintenance and Update Frequency: Ongoing. This dataset will likely be revised annually.

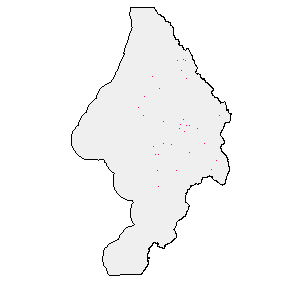

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.703537
East Bounding Coordinate: -124.134727
North Bounding Coordinate: 43.122093
South Bounding Coordinate: 42.415104

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: barriers
Theme Keyword: blockages
Theme Keyword: fish passage

Place:

Place Keyword Thesaurus: None
Place Keyword: Sixes Watershed

Access Constraints: None.
Use Constraints:
Many barriers are known to be absent from this dataset, especially culverts. Additionally, this dataset primarily contains barriers that are associated with
1:100,000 scale streams, but does contain a limited number of barriers
associated with 1:24,000 scale streams. Very few culverts are found in this
dataset due to lack of resources to incorporate this information.
ODFW will be working to enhance this dataset over time.

Point of Contact:

Contact Information:

Contact Person Primary:

Contact Person: Jon Bowers
Contact Organization: ODFW

Contact Position: GIS Analyst
Contact Address:

Address Type: physical address
Address: 3406 Cherry Avenue NE
City: Salem
State or Province: OR
Postal Code: 97303

Contact Voice Telephone: 503-872-5255 x5603
Contact Electronic Mail Address: jon.k.bowers@state.or.us
Hours of Service: M-F, 8-5

Data Set Credit: Susan Brodeur, Jennifer Lloyd, Jon Bowers ODFW
Security Information:

Security Classification System: None
Security Classification: Unclassified
Security Handling Description: None

Native Data Set Environment: Microsoft Windows 2000 Version 5.0 (Build 2195) Service Pack 4; ESRI ArcCatalog 8.3.0.800
Cross Reference:

Citation Information:

Originator: Susan Brodeur, Jennifer Lloyd, Jon Bowers
Publication Date: 2002
Title: Barriers to Fish Passage
Edition: DRAFT
Geospatial Data Presentation Form: vector digital data
Publication Information:

Publication Place: Gladstone / Portland
Publisher: StreamNet / ODFW

Other Citation Details: NA
Online Linkage: http://rainbow.dfw.state.or.us/nrimp/information/fishbarrierdata.htm

Attribute Accuracy:

Attribute Accuracy Report: See Entity_Attribute_Information

Logical Consistency Report: Point features present.
Completeness Report:
This dataset is known to be incomplete. The data have been more completely developed in the anadromous portions of the state, but
have not yet been fully developed in the interior portions of the state.
Very few culverts are included in this dataset.

Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report: no estimate of horizontal accuracy

Vertical Positional Accuracy:

Vertical Positional Accuracy Report: does not apply

Lineage:

Source Information:

Source Citation:

Citation Information:

Title: NA

Source Scale Denominator: 100000
Type of Source Media: digital data
Source Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 2002
Time of Day: Unknown

Source Currentness Reference: ground condition

Source Citation Abbreviation: ODFW Barriers_pts
Source Contribution: Spatial and attribute information

Process Step:

Process Description: BOWERSJ APPEND BAR_PTS POINT FEATURES
Process Date: 20020924
Process Time: 13:18:00

Process Step:

Process Description: BOWERSJ DOCUMENT BAR_PTS COPY D:\DATA\BARRS\BAR_BAK BOWERSJ
Process Date: 20020924
Process Time: 13:21:00

Process Step:

Process Description: BOWERSJ DOCUMENT BAR_PTS UPDATE BOWERSJ
Process Date: 20020924
Process Time: 16:33:00

Process Step:

Process Description: BOWERSJ EXPORT COVER BAR_PTS BAR_PTS.E00
Process Date: 20020925
Process Time: 15:40:00

Process Step:

Process Description: Metadata imported.
Process Date: 20040302
Process Time: 12:00:00

Cloud Cover: 0

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: Entity point
Point and Vector Object Count: 2170

SDTS Terms Description:

SDTS Point and Vector Object Type: Point
Point and Vector Object Count: 4

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0.002048
Ordinate Resolution: 0.002048

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: barriers.pat
Entity Type Definition: Point attribution table
Entity Type Definition Source: Multiple - from Published reports to district biologists prof. judgement

Attribute:

Attribute Label: AREA
Attribute Definition: Area of feature in internal units squared.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Area is always zero for point coverages. Values are automatically generated.

Attribute:

Attribute Label: BAR_NAME
Attribute Definition: Barrier name
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: FREE TEXT

Attribute:

Attribute Label: BAR_OWN
Attribute Definition: Barrier owner
Attribute Definition Source: StreamNet Assigned
Attribute Domain Values:

Unrepresentable Domain: FREE TEXT

Attribute:

Attribute Label: BAR_OWN_TY
Attribute Definition: Barrier owner type code
Attribute Definition Source: StreamNet assigned
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 2
Enumerated Domain Value Definition: federal
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 4
Enumerated Domain Value Definition: local govt
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 5
Enumerated Domain Value Definition: private
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 6
Enumerated Domain Value Definition: public utility
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 7
Enumerated Domain Value Definition: state
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 99
Enumerated Domain Value Definition: unknown
Enumerated Domain Value Definition Source: Streamnet

Attribute:

Attribute Label: BAR_TYPE
Attribute Definition: Code describing barrier type
Attribute Definition Source: StreamNet Assigned
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 1
Enumerated Domain Value Definition: Dam(found in separate dataset)
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 2
Enumerated Domain Value Definition: Culvert
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 3
Enumerated Domain Value Definition: Insufficient flow
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 4
Enumerated Domain Value Definition: Water Diversion
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 5
Enumerated Domain Value Definition: Hatchery facility - related structure
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 6
Enumerated Domain Value Definition: Falls
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 7
Enumerated Domain Value Definition: Cascade - Gradient - Velocity barrier
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 8
Enumerated Domain Value Definition: Logjam
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 9
Enumerated Domain Value Definition: Temperature
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 10
Enumerated Domain Value Definition: Tidal Gate
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 99
Enumerated Domain Value Definition: Unknown
Enumerated Domain Value Definition Source: Streamnet

Attribute:

Attribute Label: BARRIERID
Attribute Definition: Unique identifier for each barrier record
Attribute Definition Source: Streamnet
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 50000 to 99999
Enumerated Domain Value Definition: feature number
Enumerated Domain Value Definition Source: User-defined

Attribute:

Attribute Label: BARRIERS#
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: BARRIERS-ID
Attribute Definition: User-defined feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 50000 to 99999
Enumerated Domain Value Definition: feature number
Enumerated Domain Value Definition Source: User-defined

Attribute:

Attribute Label: BEGMEAS
Attribute Definition: Unknown
Attribute Definition Source: Unknown
Attribute Domain Values:

Unrepresentable Domain: Unknown

Attribute:

Attribute Label: COMMENTS
Attribute Definition: Comments that often relate to partially passable barriers
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: FREE TEXT

Attribute:

Attribute Label: ENDMEAS
Attribute Definition: Unknown
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: Unknown

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: FISHWAY_ID
Attribute Definition: Code describing status of fishway
Attribute Definition Source: Streamnet
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 1
Enumerated Domain Value Definition: Barrier has no known fishway
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 2
Enumerated Domain Value Definition: Fishway present and functioning
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 3
Enumerated Domain Value Definition: Fishway present but needs work
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 5
Enumerated Domain Value Definition: Fishway not wanted (unspecified reason)
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 10
Enumerated Domain Value Definition: Present (status unknown)
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 99
Enumerated Domain Value Definition: Unknown
Enumerated Domain Value Definition Source: Streamnet

Attribute:

Attribute Label: FISHWAY_TY
Attribute Definition: Fishway type
Attribute Definition Source: Streamnet
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 5
Enumerated Domain Value Definition: Concrete box
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 6
Enumerated Domain Value Definition: Concrete box culvert
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 25
Enumerated Domain Value Definition: Culvert with concrete
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 29
Enumerated Domain Value Definition: Damconcrete and wood
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 32
Enumerated Domain Value Definition: Denille
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 33
Enumerated Domain Value Definition: Denille and pool weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 39
Enumerated Domain Value Definition: Enclosed concrete weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 40
Enumerated Domain Value Definition: Enclosed weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 41
Enumerated Domain Value Definition: Gabion weirs
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 53
Enumerated Domain Value Definition: Pool weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 55
Enumerated Domain Value Definition: Rock cut
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 56
Enumerated Domain Value Definition: Rock cut concrete weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 57
Enumerated Domain Value Definition: Rock cut weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 58
Enumerated Domain Value Definition: Rock cut weirs
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 60
Enumerated Domain Value Definition: Rock cut conrete weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 64
Enumerated Domain Value Definition: Sill culvert
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 67
Enumerated Domain Value Definition: Steep pass denille
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 68
Enumerated Domain Value Definition: Tarred culvert
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 69
Enumerated Domain Value Definition: Tide gates
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 71
Enumerated Domain Value Definition: Tunnel weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 72
Enumerated Domain Value Definition: Vertical slot
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 73
Enumerated Domain Value Definition: Weir
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 75
Enumerated Domain Value Definition: Weir culvert
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 76
Enumerated Domain Value Definition: Concrete fish ladder
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 98
Enumerated Domain Value Definition: Not applicable
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 99
Enumerated Domain Value Definition: Unknown
Enumerated Domain Value Definition Source: Streamnet

Attribute:

Attribute Label: FLAG24K
Attribute Definition: Identifies barriers that are not on 1:100,000 scale streams
Attribute Definition Source: Streamnet
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 1
Enumerated Domain Value Definition: not on 1:100,000 scale streams
Enumerated Domain Value Definition Source: Streamnet

Attribute:

Attribute Label: GISMEAS
Attribute Definition: River mile of stream where barrier is located
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: Numeric river mile

Attribute:

Attribute Label: HATCH_ID
Attribute Definition: Unique ID for hatchery facility related barriers
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: Unique ID

Attribute:

Attribute Label: HEIGHT
Attribute Definition: Barrier height in feet
Attribute Definition Source: primarily published reports, some best professional judgement from biologists
Attribute Domain Values:

Unrepresentable Domain: Numeric height in feet

Attribute:

Attribute Label: HUC
Attribute Definition: Hydrologic Unit Code
Attribute Definition Source: USGS HUC delineations
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 17080001 to 17100203
Enumerated Domain Value Definition: HUC delineations Code
Enumerated Domain Value Definition Source: USGS

Attribute:

Attribute Label: LATITUDE
Attribute Definition: Y coordinate in geographic decimal degrees
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: Y coordinate in geographic decimal degrees

Attribute:

Attribute Label: LLID
Attribute Definition: Longitude - Lattitude identifier
Attribute Definition Source: PNW - RRF
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: Unique to each stream
Enumerated Domain Value Definition: Longitude - Lattitude identifier
Enumerated Domain Value Definition Source: PNW - RRF

Attribute:

Attribute Label: LONGITUDE
Attribute Definition: X coordinate in geographic decimal degrees
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: X coordinate in geographic decimal degrees

Attribute:

Attribute Label: OWNTYPE_ID
Attribute Definition: Owner type
Attribute Definition Source: StreamNet Assigned
Attribute Domain Values:

Unrepresentable Domain: Unknown

Attribute:

Attribute Label: PERIMETER
Attribute Definition: Perimeter of feature in internal units.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Perimeter is always zero for point coverages. Values are automatically generated.

Attribute:

Attribute Label: REF_ID
Attribute Definition: Reference citation identifier
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: ID

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: STATE_ID
Attribute Definition: State
Attribute Definition Source: Unknown
Attribute Domain Values:

Unrepresentable Domain: Unknown

Attribute:

Attribute Label: YR_COMP
Attribute Definition: Year project was completed
Attribute Definition Source: StreamNet Assigned
Attribute Domain Values:

Unrepresentable Domain: Date

Attribute:

Attribute Label: YR_INIT
Attribute Definition: Year project was initiated
Attribute Definition Source: StreamNet Assigned
Attribute Domain Values:

Unrepresentable Domain: Date

Attribute:

Attribute Label: YR_REMOVED
Attribute Definition: Year removed
Attribute Definition Source: StreamNet Assigned
Attribute Domain Values:

Unrepresentable Domain: Year

Detailed Description:

Entity Type:

Entity Type Label: BAR_PTS.FB
Entity Type Definition: This table contains fish passage barrier data for the bar_pts coverage.
Entity Type Definition Source: District biologists and reports

Attribute:

Attribute Label: BARRIERID
Attribute Definition: Unique identifier for each barrier - links coverage to this table
Attribute Definition Source: Streamnet Assigned
Attribute Domain Values:

Unrepresentable Domain: Unique identifier

Attribute:

Attribute Label: BLOCK_EXT
Attribute Definition: Species specific fish passage blockage extent
Attribute Definition Source: Biologists and reports
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 1
Enumerated Domain Value Definition: Complete
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 2
Enumerated Domain Value Definition: Partial
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 98
Enumerated Domain Value Definition: N/A
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 99
Enumerated Domain Value Definition: Unknown
Enumerated Domain Value Definition Source: Streamnet

Attribute:

Attribute Label: COMMENTS
Attribute Definition: Comments that often relate to partially passable barriers
Attribute Definition Source: Streamnet
Attribute Domain Values:

Unrepresentable Domain: FREE TEXT

Attribute:

Attribute Label: HUC
Attribute Definition: Hydrologic Unit Code
Attribute Definition Source: USGS HUC delineations
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 17080001 to 17100203
Enumerated Domain Value Definition: HUC delineation Code
Enumerated Domain Value Definition Source: USGS

Attribute:

Attribute Label: LLID
Attribute Definition: Longitude Latitude unique identifier for the stream route
Attribute Definition Source: Streamnet Assigned
Attribute Domain Values:

Unrepresentable Domain: Numeric

Attribute:

Attribute Label: POSITION
Attribute Definition: Position of the barrier relative to fish distribution
Attribute Definition Source: Biologists and reports
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 1
Enumerated Domain Value Definition: Upstream of end of species/run in the stream
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 2
Enumerated Domain Value Definition: Defines end of species/run in the stream
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 3
Enumerated Domain Value Definition: Within species/run distribution
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 99
Enumerated Domain Value Definition: Unknown
Enumerated Domain Value Definition Source: Streamnet

Attribute:

Attribute Label: RUNID
Attribute Definition: Run of the species affected by the barrier.
Attribute Definition Source: StreamNet
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 1
Enumerated Domain Value Definition: Spring
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 2
Enumerated Domain Value Definition: Summer
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 3
Enumerated Domain Value Definition: Fall
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 4
Enumerated Domain Value Definition: Winter
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 16
Enumerated Domain Value Definition: Mixed
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 98
Enumerated Domain Value Definition: N/A
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 99
Enumerated Domain Value Definition: Unknown
Enumerated Domain Value Definition Source: Streamnet

Attribute:

Attribute Label: SPECIEID
Attribute Definition: The species affected by the barrier
Attribute Definition Source: StreamNet
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: 1
Enumerated Domain Value Definition: Chinook
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 2
Enumerated Domain Value Definition: Coho
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 3
Enumerated Domain Value Definition: Steelhead
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 5
Enumerated Domain Value Definition: Chum
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 8
Enumerated Domain Value Definition: Resident Cutthroat
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 9
Enumerated Domain Value Definition: Resident Rainbow
Enumerated Domain Value Definition Source: Streamnet

Enumerated Domain:

Enumerated Domain Value: 17
Enumerated Domain Value Definition: Resident and Sea-run cutthroat
Enumerated Domain Value Definition Source: Streamnet

Overview Description:

Entity and Attribute Overview: Most attribute descriptions can be found in the Attribute section.
Entity and Attribute Detail Citation: Not Available

Distributor:

Contact Information:

Contact Person Primary:

Contact Person: Jon Bowers
Contact Organization: ODFW

Contact Position: GIS Analyst
Contact Address:

Address Type: physical address
Address: 3406 Cherry Avenue NE
City: Salem
State or Province: OR
Postal Code: 97303

Contact Voice Telephone: 503-872-5255 x5603
Contact Electronic Mail Address: jon.k.bowers@state.or.us
Hours of Service: M-F, 8-5

Resource Description: Oregon Barriers coverage
Distribution Liability:
Ecotrust makes no express or implied warrantees with respect to the character, fitness, or accuracy of the information presented,
or their appropriateness for any users purposes.

Standard Order Process:

Digital Form:

Digital Transfer Information:

Format Name: Shapefile
Format Version Number: 2002
File Decompression Technique: winzip pkzip
Transfer Size: 141

Digital Transfer Option:

Online Option:

Computer Contact Information:

Network Address:

Network Resource Name: Sixes bar_pts.zip

Access Instructions: Download online

Fees: none
Ordering Instructions: download from website
Turnaround: NA

Metadata Date: 2/27/2004
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Ecotrust

Contact Address:

Address Type: mailing address
Address: 721 NW 9th Suite 200
City: Portland
State or Province: Oregon
Postal Code: 97209
Country: USA

Contact Voice Telephone: 503-227-6225
Contact Instructions: Ecotrust created FGDC metadata from the originator's metadata so we can serve the GIS information. Please refer back to the originator for updates and additional information or clarification.

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
Metadata Extensions:

Online Linkage: http://www.esri.com/metadata/esriprof80.html
Profile Name: ESRI Metadata Profile
