Netarts Bay - NOAA Nautical Chart (18520_2)

Citation:

Citation Information:

Originator: NOAA National Ocean Service Coast Survey
Title: Netarts Bay - NOAA Nautical Chart (18520_2)
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Washington DC
Publisher: US Department of Commerce

Other Citation Details:
Further details can be obtained fromthe NOAA Office of Coastal Survey

Online Linkage: http://chartmaker.ncd.noaa.gov/

Description:

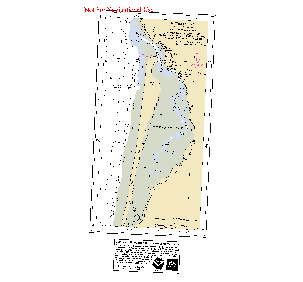

Abstract: NOAA Nautical Chart scan for Netarts Bay (1:30,000). Reprojected from original into Oregon Lambert.
Purpose:
The navigational charts produced by the National Oceanic and Atmospheric Administration (NOAA) have been used by the recreation and commercial boating communities; however, charts, especially in a digital form, can provide important base data to a much wider audience. These charts, displayed as images, can provide a useful background layer for ocean and coastal geographic information system (GIS) projects.
Supplemental Information:
Maptech, Inc. (http://www.maptech.com/), under a Cooperative Research and Development Agreement (CRADA), has an exclusive agreement to distribute NOAA charts in a proprietary format called BSB, which has been a problem for the GIS community because the format was not widely supported by mapping software vendors. For the Atlas project we obtained a CD from Maptech containing most of the current (as or 2001) nautical charts for the Oregon Coast. We reprojected the charts from their original projection to the Oregon Lambert projection and converted the proprietary BSB format charts to the more accessible TIFF format all using the Digital NOAA Nautical Chart Reprojection Utility created by NOAA's Coastal Services Center (see http://www.csc.noaa.gov/crs/Products/chartreproj/). No other actions were performed on the files.

Status:

Progress: Complete
Maintenance and Update Frequency: Continually

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -120.2725
East Bounding Coordinate: -119.9782
North Bounding Coordinate: 54.0147
South Bounding Coordinate: 53.6688

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: bathymetric map
Theme Keyword: coastal atlas
Theme Keyword: coastal management
Theme Keyword: coastal resources
Theme Keyword: nautical chart
Theme Keyword: topographic map

Place:

Place Keyword Thesaurus: None
Place Keyword: Oregon
Place Keyword: Oregon Coast
Place Keyword: Pacific Northwest
Place Keyword: Netarts Bay

Use Constraints: Not for Navigational Use
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Ocean Coastal Management Program
Contact Person: Coastal GIS Coordinator

Contact Position: Coastal GIS Coordinator
Contact Address:

Address Type: mailing address
Address: 800 NE Oregon St #18
City: Portland
State or Province: OR
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 x31
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: randy.dana@state.or.us

Native Data Set Environment: NOAA Nautical Charts TIFF

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: NOAA National Ocean Service Coast Survey
Title: Netarts Bay - NOAA Nautical Chart (18520_2)
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Washington DC
Publisher: US Department of Commerce

Other Citation Details:
Further details can be obtained fromthe NOAA Office of Coastal Survey

Online Linkage: http://chartmaker.ncd.noaa.gov/

Source Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Time: Unknown
Ending Time: Unknown

Process Step:

Process Description:
For the Atlas project we obtained a CD from Maptech containing most of the current (as or 2001) nautical charts for the Oregon Coast. We reprojected the charts from their original projection to the Oregon Lambert projection and converted the proprietary BSB format charts to the more accessible TIFF format all using the Digital NOAA Nautical Chart Reprojection Utility created by NOAA's Coastal Services Center (see http://www.csc.noaa.gov/crs/Products/chartreproj/). No other actions were performed on the files.
Cloud Cover: 0

Direct Spatial Reference Method: Raster
Raster Object Information:

Raster Object Type: Pixel
Row Count: 3960
Column Count: 1979

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization: OSU and Oregon Ocean Coastal Management Program
Contact Person: Tanya Haddad

Contact Position: NOAA Coastal Management Fellow
Contact Address:

Address Type: mailing and physical address
Address: 800 NE Oregon St. #18, Suite 1145
City: Portland
State or Province: OR
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 ext. 30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Hours of Service: 9am - 5pm

Distribution Liability: Not for Navigation
Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date: 1987
Time of Day: Unknown

Metadata Date:
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: OSU and Oregon Ocean Coastal Management Program
Contact Person: Tanya Haddad

Contact Position: NOAA Coastal Management Fellow
Contact Address:

Address Type: mailing and physical address
Address: 800 NE Oregon St. #18, Suite 1145
City: Portland
State or Province: OR
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 ext. 30
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: tanya.haddad@state.or.us
Hours of Service: 9am - 5pm

Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
