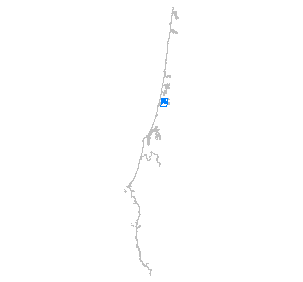

Vectorized Shoreline of Umpqua River - Army Hill to Smith River Light, NOS Coast Survey Map (TP00211), 1971

Citation:

Citation Information:

Originator:
Shoreline Vectorization Project, Oregon Ocean-Coastal Management Program (OCMP), Oregon Department of Land Conservation & Development (DLCD); Original Source Maps: United States Department of Commerce, National Oceanic and Atmospheric Administration (NOAA), National Ocean Service (NOS), National Geodetic Survey (NGS)
Publication Date: 20020131
Title: Vectorized Shoreline of Umpqua River - Army Hill to Smith River Light, NOS Coast Survey Map (TP00211), 1971
Edition: First
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Portland, Oregon
Publisher: Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development

Other Citation Details:
This shoreline data represents a vector conversion of a set of NOS raster shoreline maps (often called t-sheet or tp-sheet maps). These vector data were created by vectorizing georeferenced raster maps using Environmental Systems Research Institute, Inc. (ESRI)(, ArcInfo's( ArcScan( software to create individual ArcInfo coverages.
Online Linkage: Unknown
Larger Work Citation:

Citation Information:

Originator: U.S. Department of Commerce, National Oceanic and Atmospheric Administration, National Environmental Satellite, Data, and Information Service (NESDIS) and National Ocean Service
Publication Date: Unknown
Title: Shoreline Data Rescue Project
Other Citation Details:
The NOAA NESDIS Environmental Data Rescue Program (EDRP) funded this project. The data were created by the National Ocean Service, National Geodetic Survey (previously the National Ocean Survey) as part of its ongoing mission to map the coastline of the United States. The NOAA National Ocean Service, Coastal Services Center, developed the procedures used in this project and was responsible for project oversight. The project intent was to rescue valuable historical data and make it accessible and useful to the coastal mapping community. This process involved the conversion of original analog products to digital mapping products. This file is a further conversion of that product from a raster to a vector product that may be useful for Electronic Charting and Display Information Systems (ECDIS) and geographic information systems (GIS).
Description:

Abstract:
The Oregon Ocean-Coastal Management Program and National Oceanic and Atmospheric Administration (NOAA) joined in a Coastal Mapping Partnership to create geographic information system (GIS) vector data layers from raster images of historic and contemporary National Ocean Service (NOS) topographic survey sheets. Shorelines included are the Pacific coast and major estuaries of Oregon, the Columbia River up to the Oregon/Washington border, and the Willamette River up to Salem. Shoreline representations as far back as 1922 have been recovered and may be compared with present data to identify shoreline changes.
Purpose:
Shoreline spatial data are considered a crucial element in land use planning, determination of boundary extents, performing change analysis for erosion and accretion studies, and other types of decision making. In this data rescue project, the original paper and cloth maps were scanned at 400 dots per inch using a large format scanner at NOAA. The scanned data was then saved to CD-ROM disk for archive. This scanning process saved these important informational resources from loss, and made them available outside the National Archives. The scanned raster images were converted to vector lines (arcs) that can be described by X, Y coordinate pairs. The arcs were then given attributes.

Supplemental Information: <http://www.lcd.state.or.us/coast/specialprojects/shorelinevector.html>

Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 9/1971
Beginning Time: Unknown
Ending Date: 9/1971
Ending Time: Unknown

Currentness Reference: Publication date

Status:

Progress: Complete
Maintenance and Update Frequency: None planned

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.166687
East Bounding Coordinate: -124.083183
North Bounding Coordinate: 43.750179
South Bounding Coordinate: 43.66666

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Shoreline map
Theme Keyword: Coastal base map
Theme Keyword: Coastal zone map
Theme Keyword: Shoreline
Theme Keyword: Vectorization
Theme Keyword: Shoreline vectorization
Theme Keyword: Shoreline data
Theme Keyword: T-sheet
Theme Keyword: Tp-sheet
Theme Keyword: TP-00211

Place:

Place Keyword Thesaurus: None
Place Keyword: Reedsport
Place Keyword: Gardiner
Place Keyword: Smith River
Place Keyword: Umpqua River
Place Keyword: Douglas County
Place Keyword: Oregon

Access Constraints: None
Use Constraints:
These data were generated by OCMP to fulfill its part in NOAA's Shoreline Vectorization Project. Although OCMP is making these data available to others who may find the data of value, OCMP does not warrant, endorse, or recommend the use of these data for any given purpose. The user assumes the entire risk related to the use of these data. These data are not for navigational purposes. OCMP is providing these data ""as is,"" and OCMP disclaims any and all warranties, whether expressed or implied, including (without limitation) any implied warranties of merchantability or fitness for a particular purpose. In no event will OCMP be liable to you or to any third party for any direct, indirect, incidental, consequential, special, or exemplary damages or lost profits resulting from any use or misuse of these data.
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development
Contact Person: Randy Dana

Contact Position: GIS Coordinator
Contact Address:

Address Type: Mailing address
Address: 800 NE Oregon St. #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 x31
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: randy.dana@state.or.us
Hours of Service: Monday through Friday, 7:00 a.m. to 4:00 p.m., PST/PDT

Data Set Credit:
The final data processing was completed by the Ocean-Coastal Management Program (OCMP), Oregon Department of Land Conservation & Development (DLCD), Portland, Oregon as part of the NOAA sponsored data rescue project. NOAA's Coastal Services Center in Charleston SC developed the necessary software tools in Avenue and Arc AML to extract the shoreline from the digitized Topographic Sheets (T-sheets). NOAA's Silver Springs, MD office digitized the T-sheets and transferred them to CD_ROMs. Although the NOAA's Silver Springs, MD office originally housed all source maps and data, these documents have now been transferred to the National Archives in Washington DC.
Security Information:

Security Classification System: None

Native Data Set Environment:
Hardware: Gateway E-4200, Pentium III, Windows NT 4.0 Software: Environmental Systems Research Institute, Inc. (ESRI)(: Arc/Info 8.x, ArcTools, ArcMap, ArcView 3.x, & Spatial Analyst; Blue Marble Geographics: Geographic Transformer 3.03.
Ancillary Software: Jasc Software: Paint Shop Pro; Microsoft: Word, Excel.

Attribute Accuracy:

Attribute Accuracy Report:
The attribute accuracy was tested by on-screen comparison of the coded linework to the original image. The different codes depict shoreline, piers, dikes, jetties, breakwaters, and groins. Mistakes were identified and corrected until accurate comparisons were produced. The feature codes (f-codes) are identified as follows: approximate shoreline (1); apparent shoreline (3); shoreline plane of reference (SPOR) (7); dike or levee (25); jetty, breakwater, or groin (27); pier, ramp, or dock (30); general class for man-made objects that form a shore or waterline to include - wells or oil platforms, locks, dry docks, revetments, seawalls, wharves, marine railroads, or shorelines of seaplane bases or anchorages, and dams (38); control point or coordinate correction line (139); map extent line (-1000); state boundaries (-9997); obstructions, including ruins, wrecks, pilings, and dolphins (-9998); user-added arc (-9999)
Logical Consistency Report: All arcs were snapped by the nodes to create consistently tied strings without node dangles.
Completeness Report: These shoreline data adequately represented the shoreline at the time of the survey.
Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report:
Vector data derived from rectified raster images of NOS coastal survey maps using ArcInfo processing software. These shoreline data are referenced to NAD83. Vector shoreline was extracted from map images adequately representing the shoreline shown on original NOS source surveys.
Vertical Positional Accuracy:

Vertical Positional Accuracy Report: None

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator:
Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development; Original Source Maps: United States Department of Commerce, National Oceanic and Atmospheric Administration, National Ocean Service, National Geodetic Survey
Publication Date: 20020131
Title: Georeferenced Scanned Shoreline Maps of Umpqua River Derived from NOAA NOS Coastal Survey Maps Developed from 1971 Source Data
Edition: First
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Portland, Oregon
Publisher: Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development

Source Scale Denominator: 10000
Type of Source Media: Map manuscript
Source Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 9/1971
Beginning Time: Unknown
Ending Date: 9/1971
Ending Time: Unknown

Source Currentness Reference: Publication date

Source Citation Abbreviation: TP00211
Source Contribution: Registered topographic maps serve as the base maps from which the mean high water shoreline is extracted using heads-up digitizing procedures developed by the Coastal Services Center, Charleston SC.

Process Step:

Process Description:
The process of converting the raster data to vectors is a four-step process. First, the latitude and longitude intersections in the raster image are assigned their coordinate values. Second, the images are projected and transformed into degrees and decimal degrees. Third, the coastline data on the raster images are vectorized and attributes are added to obtain the final line work that is saved in a digital format. Finally, if needed, these vectorized shorelines are projected into a common datum, in this case NAD83.
Process Date: 19990329
Process Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development
Contact Person: Randy Dana

Contact Position: GIS Coordinator
Contact Address:

Address Type: Mailing address
Address: 800 NE Oregon St. #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 x31
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: randy.dana@state.or.us
Hours of Service: Monday through Friday, 7:00 a.m. to 4:00 p.m., PST/PDT

Cloud Cover: 0

Indirect Spatial Reference: Umpqua River at Reedsport
Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: Complete chain
Point and Vector Object Count: 776

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: Tp00211cov
Entity Type Definition: Arc attribute table
Entity Type Definition Source: None

Attribute:

Attribute Label: F-code
Attribute Definition: Shoreline feature code
Attribute Definition Source: User defined
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: -9999
Enumerated Domain Value Definition: User-added arc
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: -9998
Enumerated Domain Value Definition: Obstruction, including wreck, ruins, pilings, and dolphins
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: -9997
Enumerated Domain Value Definition: State boundary
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: -1000
Enumerated Domain Value Definition: Map extent line
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: 1
Enumerated Domain Value Definition: Approximate shoreline
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: 3
Enumerated Domain Value Definition: Apparent shoreline
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: 7
Enumerated Domain Value Definition: Shoreline plane of reference (SPOR)
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: 25
Enumerated Domain Value Definition: Dike or levee
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: 27
Enumerated Domain Value Definition: Jetty, breakwater, or groin
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: 30
Enumerated Domain Value Definition: Pier, ramp, or dock
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: 38
Enumerated Domain Value Definition:
General class for man-made objects that form a shore or waterline to include wells or oil platforms, locks, dry docks, revetments, seawalls, wharves, or shorelines of seaplane bases or anchorages, and dams
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: 139
Enumerated Domain Value Definition: Control point or coordinate correction line
Enumerated Domain Value Definition Source: NOAA NOS

Attribute:

Attribute Label: F-name
Attribute Definition: Shoreline feature name
Attribute Definition Source: User defined
Attribute Domain Values:

Enumerated Domain:

Enumerated Domain Value: User added line
Enumerated Domain Value Definition:
Lines that are added to the vector coverage by the data entry operator and do not appear on the source map. Reasons for the added lines vary. Reasons include connecting the ends of double-banked streams to permit polygon generation and adding bisecting lines to locate center of triangulation marks.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: piling, dolphin, ruin, or wreck
Enumerated Domain Value Definition: Linework that represents general waterway obstructions, including wrecks, ruins, pilings, and dolphins.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: state boundary
Enumerated Domain Value Definition: Linework that represents state boundaries shown on the source map.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: map extent line
Enumerated Domain Value Definition: Linework that represents the neatline of the source map or a polygon bounding the map area.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: approximate shore
Enumerated Domain Value Definition:
Linework that represents the approximate location of shoreline on the source map. This is assigned to linework that may be obscured by man-made features such as bridges or large piers or where faults in the original chart or the scan process cause small gaps in the linework. The data entry operator does not have an actual line to vectorize from the source map, but can make a ""highly educated guess"" as to the actual location of the line.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: apparent shore
Enumerated Domain Value Definition:
Linework that represents the shoreline that would appear to a mariner and the location of the shoreline shown on the source map. This is assigned to linework when the natural shoreline is obscured by vegetation.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: Shoreline Plane of Reference
Enumerated Domain Value Definition: Linework that represents the ""Shoreline Plane of Reference"" or SPOR on the source map. This is assigned to linework that delineates natural and man-made shoreline.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: dike, levee, or embankment
Enumerated Domain Value Definition: Linework that represents a dike, levee, or embankment on the source map.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: jetty, breakwater, or groin
Enumerated Domain Value Definition: Linework that represents a jetty, breakwater, or groin on the source map.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: pier, ramp, or dock
Enumerated Domain Value Definition: Linework that represents a pier, ramp, or dock on the source map.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: general man-made shore or waterline
Enumerated Domain Value Definition:
Linework that represents various types of man-made objects on the source map. This is assigned to man-made objects that appear along shorelines that may include wells or oil platforms, locks, dry docks, revetments, seawalls, wharves, marine railroads, or shorelines of seaplane bases or anchorages, or dams.
Enumerated Domain Value Definition Source: NOAA NOS

Enumerated Domain:

Enumerated Domain Value: control point or correction mark
Enumerated Domain Value Definition:
Linework that represents the location of a geodetic control point placed by the NOAA NOS National Geodetic Survey or correction marks showing relative coordinate offset due to datum shifting. The representative triangle symbol vectorized from the source map illustrates the location of the control point in the center of the triangle with the name of the control point annotated on the source map.
Enumerated Domain Value Definition Source: NOAA NOS

Attribute:

Attribute Label: Fnode#
Attribute Definition: From-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Gisdate
Attribute Definition: Date of data capture
Attribute Definition Source: User defined
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 19990101
Range Domain Maximum: 20011231

Attribute:

Attribute Label: Length
Attribute Definition: Length of line
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Lpoly#
Attribute Definition: Internal number of polygon to left of arc
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Rpoly#
Attribute Definition: Internal number of polygon to right of arc
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Scale
Attribute Definition: Scale of source map
Attribute Definition Source: User defined
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 5000
Range Domain Maximum: 1000000

Attribute:

Attribute Label: Survey date
Attribute Definition: Date of survey
Attribute Definition Source: User defined
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 18500101
Range Domain Maximum: 19721231

Attribute:

Attribute Label: Tnode#
Attribute Definition: To-node identifier of linear feature
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Tp00211cov#
Attribute Definition: Internal feature number
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Tp00211cov-id
Attribute Definition: Feature identification number
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: User defined

Attribute:

Attribute Label: Tsheet#
Attribute Definition: Map number
Attribute Definition Source: User defined
Attribute Domain Values:

Unrepresentable Domain: Character field

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development
Contact Person: Randy Dana

Contact Position: GIS Coordinator
Contact Address:

Address Type: Mailing address
Address: 800 NE Oregon St. #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 x31
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: randy.dana@state.or.us
Hours of Service: Monday through Friday, 7:00 a.m. to 4:00 p.m., PST/PDT

Resource Description: CD-ROM
Distribution Liability:
This document was produced by the Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development. Portions of this information may be incorrect or out of date. The information contained in this document is subject to change without notice. Not intended for navigational purposes.
Technical Prerequisites: ArcView 3.x or ArcInfo

Metadata Date: 1/28/2002
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development
Contact Person: Randy Dana

Contact Position: GIS Coordinator
Contact Address:

Address Type: Mailing address
Address: 800 NE Oregon St. #18
City: Portland
State or Province: Oregon
Postal Code: 97232
Country: USA

Contact Voice Telephone: 503-731-4065 x31
Contact Facsimile Telephone: 503-731-4068
Contact Electronic Mail Address: randy.dana@state.or.us
Hours of Service: Monday through Friday, 7:00 a.m. to 4:00 p.m., PST/PDT

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: Local time
Metadata Access Constraints: None
Metadata Use Constraints:
This document was produced by the Oregon Ocean-Coastal Management Program, Oregon Department of Land Conservation & Development. Portions of this information may be incorrect or out of date. The information contained in this document is subject to change without notice.
Metadata Security Information:

Metadata Security Classification System: None
Metadata Security Classification: Unclassified
