Three Arch Rocks National Wildlife Refuge and Wilderness, USFWS, 2004

Citation:

Citation Information:

Originator: USFWS, Region 1, Division of Refuge Planning
Publication Date: 20000815
Title: Three Arch Rocks National Wildlife Refuge and Wilderness, USFWS, 2004
Geospatial Data Presentation Form: vector digital data

Description:

Abstract:

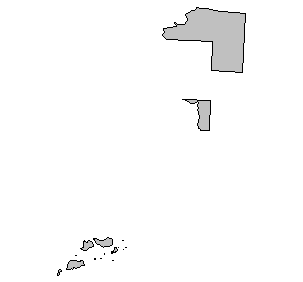

This data set depicts legislative boundary information for Three Arch Rocks National Wildlife Refuge and the Three Arch Rocks Wilderness in Tillamook County, Oregon. National Wildlife Refuges are federal lands managed by the U.S. Fish and Wildlife Service (USFWS). The primary source for boundary information is the USFWS Realty and Refuge Planning programs (land status maps, planning documents, legal surveys).
Purpose:
The intended application of the data is to serve as a spatial reference of refuge boundaries for other data layers in GIS and mapping applications. It is specifically not intended to be used as a land survey or representation of land for conveyance or tax purposes. The Realty Land Survey program in USFWS is developing cadastral information (boundary and acreage data) appropriate for legal purposes. It is expected that data will be replaced as better survey information is collected.
Supplemental Information:
All lands and rocky islets within the boundary depicted in this coverage and above the line of mean high tide are within the Three Arch Rocks National Wildlife Refuge (E.O. 699) and Wilderness (P.L. 91-504).
Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 8/2000
Time of Day: Unknown

Currentness Reference: publication date

Status:

Progress: Complete
Maintenance and Update Frequency: As needed

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124
East Bounding Coordinate: -123.9667
North Bounding Coordinate: 45.475
South Bounding Coordinate: 45.45

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: NWR
Theme Keyword: NWR Boundaries
Theme Keyword: National Wildlife Refuge
Theme Keyword: Wilderness

Place:

Place Keyword Thesaurus: None
Place Keyword: Three Arch Rocks
Place Keyword: Tillamook County
Place Keyword: Oregon
Place Keyword: USA

Access Constraints: None
Use Constraints:
Refuge boundary data were compiled for resource applications. It is inappropriate to use this
data in legal situations, or other applications
where spatial error cannot exceed the USGS 7.5'
mapping standards.

Point of Contact:

Contact Information:

Contact Person Primary:

Contact Person: Dave Hoy
Contact Organization: USFWS, Region 1, Division of Refuge Planning

Contact Position: Cartographer
Contact Address:

Address Type: mailing and physical address
Address:
U. S. Fish and Wildlife Service Division of Refuge Planning
911 NE 11th Ave.

City: Portland
State or Province: Oregon
Postal Code: 97232-4181
Country: USA

Contact Voice Telephone: 503-231-2230
Contact Facsimile Telephone: 503-231-6161
Contact Electronic Mail Address: david_hoy@fws.gov
Hours of Service: 8:00 a.m. to 4:00 p.m. Monday Through Friday

Data Set Credit: USFWS, Region 1, Division of Refuge Planning
Native Data Set Environment:
ARC / INFO Version 8.0 Double Precision, Windows NT 4.0 operating system

Attribute Accuracy:

Attribute Accuracy Report:
Digital refuge boundaries are plotted for arc and polygon attributes, and compared to USFWS Realty land status maps for coding accuracy. Extensive review is conducted until all errors are corrected. See Service Lands Boundary Data Standard Operating Proceedure (SOP 97-01).
Logical Consistency Report: All polygons are closed and all dangling arcs are removed.
Completeness Report: This data set contains the refuge boundary and wilderness boundary as depicted on the Three Arch Rocks National Wildlife Refuge land status map.
Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report:
The horizontal positional accuracy is tested by visual comparison of hard copy check plots to the source materials and verifying the location of the data on-screen relative to other data layers in the same geographic area.
Vertical Positional Accuracy:

Vertical Positional Accuracy Report: Not applicable

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: USFWS Region 1, Realty Division
Publication Date: 198407
Title: Three Arch Rocks National Wildlife Refuge
Geospatial Data Presentation Form: map
Series Information:

Series Name: USFWS Land Status Map

Publication Information:

Publication Place: Portland, OR

Type of Source Media: stable-base material and digital files
Source Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 7/1984
Time of Day: Unknown

Source Currentness Reference: publication date

Source Citation Abbreviation: USFWS
Source Contribution: Spatial Information

Process Step:

Process Description: The refuge boundary was digitized in AutoCad from theThree Arch Rocks NWR land status map.
Process Date: 199608
Process Contact:

Contact Information:

Contact Person Primary:

Contact Person: Dave Hoy
Contact Organization: USFWS, Region 1, Division of Refuge Planning

Contact Position: Cartographer
Contact Address:

Address Type: mailing and physical address
Address:
U. S. Fish and Wildlife Service Division of Refuge Planning
911 NE 11th Ave.

City: Portland
State or Province: Oregon
Postal Code: 97232-4181
Country: USA

Contact Voice Telephone: 503-231-2230
Contact Facsimile Telephone: 503-231-6161
Contact Electronic Mail Address: david_hoy@fws.gov
Hours of Service: 8:00 a.m. to 4:00 p.m. Monday Through Friday

Process Step:

Process Description: The digitized boundary .DXF file was imported into ArcInfo and polygon topology was built. The coverage was attributed according to SOP 97-01standards.
Process Date: 200008
Process Contact:

Contact Information:

Contact Person Primary:

Contact Person: Dave Hoy
Contact Organization: USFWS, Region 1, Division of Refuge Planning

Contact Position: Cartographer
Contact Address:

Address Type: mailing and physical address
Address:
U. S. Fish and Wildlife Service Division of Refuge Planning
911 NE 11th Ave.

City: Portland
State or Province: Oregon
Postal Code: 97232-4181
Country: USA

Contact Voice Telephone: 503-231-2230
Contact Facsimile Telephone: 503-231-6161
Contact Electronic Mail Address: david_hoy@fws.gov
Hours of Service: 8:00 a.m. to 4:00 p.m. Monday Through Friday

Cloud Cover: 0

Indirect Spatial Reference: Not Applicable
Direct Spatial Reference Method: Vector

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0.000001
Ordinate Resolution: 0.000001

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: tar_bnd.aat
Entity Type Definition: Attributes of boundary lines inside of the legislative boundary
Entity Type Definition Source: USFWS Service Lands Digital Boundary SOP 97-01

Attribute:

Attribute Label: ACREAGE

Attribute:

Attribute Label: AREA

Attribute:

Attribute Label: CPM_BND_

Attribute:

Attribute Label: CPM_BND_ID

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: IFWSNO
Attribute Definition: The adminstrative number assigned to each refuge.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: ISLANDNO

Attribute:

Attribute Label: NameNOAA

Attribute:

Attribute Label: NWRNAME
Attribute Definition: The three letter abbreviation of the full refuge name.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: NWRUNIT
Attribute Definition: Three letter abbreviation assigned to 'units' of a refuge.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: PERIMETER

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: STATUS

Attribute:

Attribute Label: TAR_BND_

Attribute:

Attribute Label: TAR_BND_ID

Attribute:

Attribute Label: TRACTNO

Detailed Description:

Entity Type:

Entity Type Label: tar_bnd.pat
Entity Type Definition: USFWS land ownership/control polygons (tracts) inside of the legislative boundary
Entity Type Definition Source: USFWS Service Lands Digital Boundary SOP 97-01

Attribute:

Attribute Label: ACREAGE
Attribute Definition: Acreage calculated from square coverage units.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: AREA

Attribute:

Attribute Label: IFWSNO
Attribute Definition: The adminstrative number assigned to each refuge.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: NWRNAME
Attribute Definition: The three letter abbreviation of the full refuge name.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: NWRUNIT
Attribute Definition: Three letter abbreviation assigned to 'units' of a refuge.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: PERIMETER

Attribute:

Attribute Label: STATUS
Attribute Definition:
This item contains USFWS defined character codes describing the nature of land ownership relative to the refuge system. Character code definitions are as follows: o = owned (land currently owned by USFWS); i = inholding (area within the legislative boundary availiable for acquisition but not owned by USFWS); e = easement (land where easement or lease shares jurisdiction, could contain double codes describing type of easement); s = secondary (USFWS is secondary to other federal agencies); x = exclusion (an area internal to a closed legislative polygon that is excluded from acquisition); u = uncertain (status of parcel is uncertain because it is unknown, disputed, or requires additional research in Realty); RR = railroad; X = waterfowl management rights; W = water; T = telephone; R = road; P = pipeline; C = conservation easement; E = electric power transmission lines; ET = electric and telephone line combination; M = miscellaneous; A = agricultural; D = ditch, canal, or culvert. Single character code definitions are obvious, however, an example of a double character code would be 'eX' which describes a wetland easement. Another such example would be 'eRR' which describes a railroad easement.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01

Attribute:

Attribute Label: TAR_BND#

Attribute:

Attribute Label: TAR_BND-ID

Attribute:

Attribute Label: TAR_WLDNS
Attribute Definition:
This item describes any areas within the refuge boundary that are excluded from the wilderness. 'YES' defines areas as being included in the wilderness, 'NO' defines exclusions from the wilderness.
Attribute Definition Source: USFWS, Region 1, Division of Refuge Planning

Attribute:

Attribute Label: TRACTNO
Attribute Definition: Tract numbers as assigned by USFWS Realty Division.
Attribute Definition Source: USFWS, Region 1, Division of Realty

Detailed Description:

Entity Type:

Entity Type Label: tar_bnd.nat

Attribute:

Attribute Label: ARC#

Attribute:

Attribute Label: TAR_BND#

Attribute:

Attribute Label: TAR_BND-ID

Distributor:

Contact Information:

Contact Person Primary:

Contact Person: Dave Hoy
Contact Organization: USFWS, Region 1, Division of Refuge Planning

Contact Position: Cartographer
Contact Address:

Address Type: mailing and physical address
Address:
U. S. Fish and Wildlife Service Division of Refuge Planning
911 NE 11th Ave.

City: Portland
State or Province: Oregon
Postal Code: 97232-4181
Country: USA

Contact Voice Telephone: 503-231-2230
Contact Facsimile Telephone: 503-231-6161
Contact Electronic Mail Address: david_hoy@fws.gov
Hours of Service: 8:00 a.m. to 4:00 p.m. Monday Through Friday

Resource Description: Downloadable Data
Standard Order Process:

Digital Form:

Digital Transfer Information:

Format Name: .E00
Transfer Size: 0

Digital Transfer Option:

Online Option:

Computer Contact Information:

Network Address:

Network Resource Name: Please call for FTP instructions

Fees: none
Ordering Instructions: Please call for information
Turnaround: fast

Metadata Date: 8/17/2000
