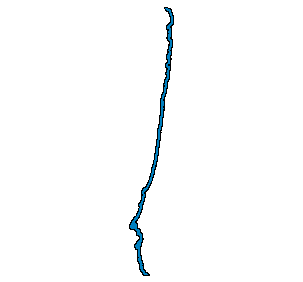

Territorial Sea Polygon with ESI Shoreline, OCMP, 2010

Citation:

Citation Information:

Originator: Oregon Coastal Management Program
Publication Date: 20101231
Title: Territorial Sea Polygon with ESI Shoreline, OCMP, 2010
Geospatial Data Presentation Form: vector digital data

Description:

Abstract: This dataset outlines the Territorial Sea Boundary for the state of Oregon. It is based on the Evironmental Sensitivity Index (ESI) shoreline for the state.
Purpose:
To provide a version of the Oregon Territorial Sea Polygon that has a shoreline coincident with the older ESI shoreline, so that calculations based on that shoreline are comparable to calculations based on this polygon.
Supplemental Information:
The Oregon ESI shoreline dates to the mid-1980's. The line was digitized to provide an framework for attaching environmental data for oil spill planning and response. The data attached to this shoreline model was used in the Oregon Territorial Sea Planning process.
Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 2010
Time of Day: Unknown

Currentness Reference: publication date

Status:

Progress: Complete
Maintenance and Update Frequency: None planned

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.958731
East Bounding Coordinate: -123.703376
North Bounding Coordinate: 46.256309
South Bounding Coordinate: 41.98281

Keywords:

Theme:

Theme Keyword Thesaurus: ISO 19115 Topic Categories
Theme Keyword: oceans
Theme Keyword: planningCadastre

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Sensitivity Maps
Theme Keyword: Coastal Resources
Theme Keyword: Oil Spill Planning
Theme Keyword: Coastal Zone Management
Theme Keyword: Territorial Sea Boundary

Access Constraints: None
Use Constraints: None. Be aware that the ESI line does not represent a legal boundary of the Oregon Territorial sea.
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Dept of Land Conservation and Development
Contact Person: Andy Lanier

Contact Position: Coastal Resources Specialist
Contact Address:

Address Type: mailing and physical
Address: 635 Capitol Street NE, Suite 150
City: Salem
State or Province: OR
Postal Code: 97301-2540
Country: US

Contact Voice Telephone: (503) 373-0050 ext. 246
Contact Electronic Mail Address: andy.lanier@state.or.us

Native Data Set Environment: Microsoft Windows XP Version 5.1 (Build 2600) Service Pack 3; ESRI ArcCatalog 9.3.0.1770

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: G-polygon
Point and Vector Object Count: 1

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: Territorial_Sea_Polygon_ESIShoreline_OCMP_2010

Attribute:

Attribute Label: AREA

Attribute:

Attribute Label: Area_km2

Attribute:

Attribute Label: area_sqmi

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: Esri
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: PERIMETER

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: Shape_Area
Attribute Definition: Area of feature in internal units squared.
Attribute Definition Source: Esri
Attribute Domain Values:

Unrepresentable Domain: Positive real numbers that are automatically generated.

Attribute:

Attribute Label: Shape_Leng

Attribute:

Attribute Label: TSEAESIP2_

Attribute:

Attribute Label: TSEAESIP21

Resource Description: Downloadable Data
Standard Order Process:

Digital Form:

Digital Transfer Information:

Transfer Size: 1.608

Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1/1895
Time of Day: Unknown

Metadata Date: 9/23/2013
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Dept of Land Conservation and Development
Contact Person: Andy Lanier

Contact Position: Coastal Resources Specialist
Contact Address:

Address Type: mailing and physical
Address: 635 Capitol Street NE, Suite 150
City: Salem
State or Province: OR
Postal Code: 97301-2540
Country: US

Contact Voice Telephone: (503) 373-0050 ext. 246
Contact Electronic Mail Address: andy.lanier@state.or.us

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
