Rocky Shoreline Sections of the Oregon Coast, ODFW, 2005

Citation:

Citation Information:

Originator: Oregon Department of Fish and Wildlife
Publication Date: 2005
Title: Rocky Shoreline Sections of the Oregon Coast, ODFW, 2005
Geospatial Data Presentation Form: vector digital data

Description:

Abstract:

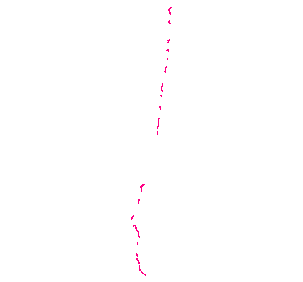

This dataset depicts Oregon's rocky shoreline. The rocky shoreline includes beaches or the base of cliffs that have rocky substrate, including cobble, gravel, boulder and bedrock. Rocky shoreline was delineated from color-infrared aerial photographs of the entire Oregon coast shot at minus tides in 1994.
Purpose: The purpose of this dataset was to delineate shoreline features for resource management and spatial planning purposes.
Supplemental Information:
Photographs were the actual contact prints of the negatives, providing superior resolution at a scale of 1:7200. Features of the coastline in the photographs were qualitatively aligned with the same features in a BLM digital coastline in ArcGIS. The BLM digital coastline was then clipped where rocky shoreline features were noted and copied into a separate "rockyshore" GIS layer.
Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 1994
Time of Day: Unknown

Currentness Reference: ground condition

Status:

Progress: Complete
Maintenance and Update Frequency: None planned

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.790661
East Bounding Coordinate: -123.712218
North Bounding Coordinate: 45.982243
South Bounding Coordinate: 42.000023

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Shoreline
Theme Keyword: Sandy
Theme Keyword: Substrate

Place:

Place Keyword Thesaurus: None
Place Keyword: Oregon Coast
Place Keyword: Pacific Northwest

Access Constraints: None
Use Constraints: None
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Department of Fish and Wildlife
Contact Person: Arlene Merems

Contact Voice Telephone: 541-867-0300 x 246

Native Data Set Environment: Microsoft Windows Vista Version 6.1 (Build 7601) Service Pack 1; ESRI ArcCatalog 9.3.1.4000

Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report: Photographs were the actual contact prints of the negatives, providing superior resolution at a scale of 1:7200.

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: Bureau of Land Management
Publication Date: 2007
Title: Boundary State OR WA (Line)
Other Citation Details:
The BLM Cartographic line is derrived largely from the USGS DLG data set circa 1996, and modified such that the western boundary will cut across bays and estuaries, etc., from bank to bank. OR: The County cartographic boundary where it is coincidental with a State or hydrologic boundary is defined as a combination of the surveyed boundaries between Oregon, California, Nevada, and Idaho; and the shoreline of the Pacific Ocean, Columbia and Snake Rivers, including the surveyed islands within the State jurisdictional boundary.
Source Scale Denominator: 24000
Source Time Period of Content:

Time Period Information:

Single Date/Time:

Time of Day: Unknown

Source Citation Abbreviation: Boundary State OR WA (Line) , BLM, 2007
Source Contribution:
Actual shoreline segments were excerpted directly from BLM cartographic state boundary line file for the State of Oregon. Aerial imagery was simply used to create breakpoints in the BLM line, so that sandy and rocky sections of coastline could be segregated.
Process Step:

Process Description:
The sandy shoreline was delineated from color-infrared aerial photographs of the entire Oregon coast shot at minus tides in 1994. Features of the coastline in the photographs were qualitatively aligned with the same features in the BLM digital coastline in ArcGIS. The BLM digital coastline was then clipped where rocky shoreline features were noted and copied into a separate "rockyshore" GIS layer.
Process Date: 2005
Process Contact:

Contact Information:

Contact Person Primary:

Contact Person: Arlene Merems
Contact Organization: Oregon Department of Fish and Wildlife

Contact Position: Marine Habitat Project, Assistant Project Leader
Contact Address:

Address Type: mailing and physical address
Address: 2040 SE Marine Science Dr.
City: Newport
State or Province: OR
Postal Code: 97365
Country: USA

Contact Voice Telephone: 541-867-0300 x246
Contact Facsimile Telephone: 541-867-0311
Contact Electronic Mail Address: arlene.r.merems@state.or.us

Cloud Cover: 0

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: String
Point and Vector Object Count: 917

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: rockyshore_line_2005

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: ID

Attribute:

Attribute Label: Length

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Distributor:

Contact Information:

Contact Person Primary:

Contact Person: Arlene Merems
Contact Organization: Oregon Department of Fish and Wildlife

Contact Position: Marine Habitat Project, Assistant Project Leader
Contact Address:

Address Type: mailing and physical address
Address: 2040 SE Marine Science Dr.
City: Newport
State or Province: OR
Postal Code: 97365
Country: USA

Contact Voice Telephone: 541-867-0300 x246
Contact Facsimile Telephone: 541-867-0311
Contact Electronic Mail Address: arlene.r.merems@state.or.us

Resource Description: Downloadable Data
Standard Order Process:

Digital Form:

Digital Transfer Information:

Transfer Size: 0.504

Metadata Date: 11/8/2011
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Oregon Department of Fish and Wildlife
Contact Person: Arlene Merems

Contact Voice Telephone: 541-867-0300 x 246

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
