Oregon Planning Unit Cells, OCMP, 2010

Citation:

Citation Information:

Originator: Oregon Coastal Management Program
Publication Date: 2010
Title: Oregon Planning Unit Cells, OCMP, 2010
Geospatial Data Presentation Form: vector digital data

Description:

Abstract:

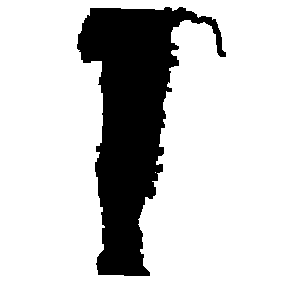

This layer consists of a planning unit grid for the marine and coastal waters of Oregon. The planning unit grid was generated by subsetting the Minerals Management Service planning grid, to create a planning grid of 1 mile blocks (approximately).
Purpose:
The layer was designed to fit into the current regulatory framework for offshore areas of Oregon's exclusive economic zone, specifically covering the continental shelf and slope of Oregon. The layer is to be used in the marine spatial planning process for amending Oregon's Territorial Sea Plan.
Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 2010
Time of Day: Unknown

Currentness Reference: publication date

Status:

Progress: Complete
Maintenance and Update Frequency: None planned

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -126.13106
East Bounding Coordinate: -122.503933
North Bounding Coordinate: 46.385153
South Bounding Coordinate: 41.900195

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Marine Spatial Planning
Theme Keyword: Planning Unit Grid

Access Constraints: None
Use Constraints: While this data was created to fit with the MMS sub-regional planning units, the layer has no legal uses. DO NOT USE FOR NAVIGATIONAL PURPOSES
Point of Contact:

Contact Information:

Contact Person Primary:

Contact Person: Andy Lanier
Contact Organization: Oregon Dept of Land Conservation and Development

Contact Position: Coastal Resources Specialist
Contact Address:

Address Type: mailing and physical address
Address: 635 Capitol Street NE, Suite 150
City: Salem
State or Province: OR
Postal Code: 97301

Contact Voice Telephone: 5033730050
Contact Electronic Mail Address: andy.lanier@state.or.us

Data Set Credit: Generated by Randy Dana, of the DLCD. Edited by Andy Lanier
Native Data Set Environment: Microsoft Windows XP Version 5.1 (Build 2600) Service Pack 3; ESRI ArcCatalog 9.3.0.1770

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: G-polygon
Point and Vector Object Count: 21491

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: Oregon_Planning_Unit_Cells_OCMP_2010

Attribute:

Attribute Label: DLCDBlkNum

Attribute:

Attribute Label: DLCDSubNum

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: Esri
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: OBJECTID

Attribute:

Attribute Label: OCSBlkNum

Attribute:

Attribute Label: OCSProtNum

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: Shape_Area
Attribute Definition: Area of feature in internal units squared.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Positive real numbers that are automatically generated.

Attribute:

Attribute Label: Shape_Le_1

Attribute:

Attribute Label: Shape_Leng

Attribute:

Attribute Label: TNCBlock

Attribute:

Attribute Label: TSBlock

Attribute:

Attribute Label: Zone_

Resource Description: Downloadable Data
Standard Order Process:

Digital Form:

Digital Transfer Information:

Format Name: Personal GeoDatabase Feature Class
Transfer Size: 2.823

Metadata Date: 9/23/2013
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Dept of Land Conservation and Development
Contact Person: Andy Lanier

Contact Position: Coastal Resources Specialist
Contact Address:

Address Type: mailing and physical
Address: 635 Capitol Street NE, Suite 150
City: Salem
State or Province: OR
Postal Code: 97301-2540
Country: US

Contact Voice Telephone: (503) 373-0050 ext. 246
Contact Electronic Mail Address: andy.lanier@state.or.us

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
