Oregon Islands National Wildlife Refuge, USFWS, 2004

Citation:

Citation Information:

Originator: US Fish and Wildlife Service
Publication Date: 20041231
Title: Oregon Islands National Wildlife Refuge, USFWS, 2004
Geospatial Data Presentation Form: vector digital data

Description:

Abstract:

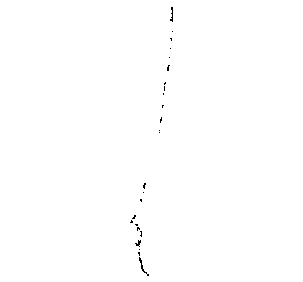

This data set depicts boundary information for Oregon Islands National Wildlife Refuge. National Wildlife Refuges are federal lands managed by the U.S. Fish and Wildlife Service (USFWS). The primary source for boundary information is the USFWS Realty and Refuge Planning programs (land status maps, planning documents, legal surveys).
Purpose:
The intended application of the data is to serve as a resource grade spatial reference of refuge boundaries for other data layers in GIS and mapping applications. It is specifically not intended to be used as a land survey or representation of land for conveyance or tax purposes. The Realty Land Survey program in USFWS is developing cadastral information (boundary and acreage data) appropriate for legal purposes. It is expected that data will be replaced as better survey information is collected.
Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 2004
Time of Day: Unknown

Currentness Reference: publication date

Status:

Progress: In work
Maintenance and Update Frequency: As needed

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.864259
East Bounding Coordinate: -123.745521
North Bounding Coordinate: 45.952647
South Bounding Coordinate: 41.989577

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: NWR
Theme Keyword: NWR Boundaries
Theme Keyword: National Wildlife Refuge

Access Constraints: None
Use Constraints:
Refuge boundary data were compiled for resource applications. It is inappropriate to use this data in legal situations, or other applications where spatial error cannot exceed the USGS 7.5' mapping standards.
Point of Contact:

Contact Information:

Contact Person Primary:

Contact Person: Mar Kildow
Contact Organization: US Fish and Wildlife Service

Contact Position: Region 1 GIS Coordinator
Contact Address:

City: Portland
State or Province: OR
Postal Code: 97232

Data Set Credit: USFWS, Region 1, Division of Refuge Planning
Native Data Set Environment: Microsoft Windows XP Version 5.1 (Build 2600) Service Pack 3; ESRI ArcCatalog 9.3.0.1770

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: G-polygon
Point and Vector Object Count: 1865

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: OR_Islands_USFWS_2004
Entity Type Definition: Attributes of boundary lines inside of the legislative boundary
Entity Type Definition Source: USFWS Service Lands Digital Boundary SOP 97-01

Attribute:

Attribute Label: ACREAGE

Attribute:

Attribute Label: AREA

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: IFWSNO
Attribute Definition: The adminstrative number assigned to each refuge.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: ISLANDNO

Attribute:

Attribute Label: NameNOAA

Attribute:

Attribute Label: NWRNAME
Attribute Definition: The three letter abbreviation of the full refuge name.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: NWRUNIT
Attribute Definition: Three letter abbreviation assigned to 'units' of a refuge.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: ORG_BND_

Attribute:

Attribute Label: ORG_BND_ID

Attribute:

Attribute Label: PERIMETER

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: Shape_Area
Attribute Definition: Area of feature in internal units squared.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Positive real numbers that are automatically generated.

Attribute:

Attribute Label: Shape_Leng

Attribute:

Attribute Label: STATUS

Attribute:

Attribute Label: TRACTNO

Detailed Description:

Entity Type:

Entity Type Label: org_bnd.pat
Entity Type Definition: USFWS land ownership/control polygons (tracts) inside of the legislative boundary
Entity Type Definition Source: USFWS Service Lands Digital Boundary SOP 97-01

Attribute:

Attribute Label: ACREAGE
Attribute Definition: Acreage calculated from square coverage units.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: AREA
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: IFWSNO
Attribute Definition: The adminstrative number assigned to each refuge.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: ISLANDNO
Attribute Definition: Unique island numbers that can be joined to the Sea Bird Colony database.
Attribute Definition Source: USFWS, Division of Refuge Planning

Attribute:

Attribute Label: NWRNAME
Attribute Definition: The three letter abbreviation of the full refuge name.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: NWRUNIT
Attribute Definition: Three letter abbreviation assigned to 'units' of a refuge.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01.

Attribute:

Attribute Label: ORG_BND#
Attribute Definition: Area of feature in internal units squared.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Positive real numbers that are automatically generated.

Attribute:

Attribute Label: ORG_BND-ID
Attribute Definition: Perimeter of feature in internal units.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Positive real numbers that are automatically generated.

Attribute:

Attribute Label: PERIMETER
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: STATUS
Attribute Definition:
This item contains USFWS defined character codes describing the nature of land ownership relative to the refuge system. Character code definitions are as follows: o = owned (land currently owned by USFWS); i = inholding (area within the legislative boundary availiable for acquisition but not owned by USFWS); e = easement (land where easement or lease shares jurisdiction, could contain double codes describing type of easement); ec = conservation easement (an easement restricting development); s = secondary (USFWS is secondary to other federal agencies); r = lease (leased land); v = permit (land acquired by permit or license); g = outgrant (FWS grants use to another party); f = Farm Home (tract acquired from U.S. Dept. of Agriculture farm loan foreclosure); x = exclusion (an area internal to a closed legislative polygon that is excluded from acquisition); u = uncertain (status of parcel is uncertain because it is unknown, disputed, or requires additional research in Realty); RR = railroad; X = waterfowl management rights; W = water; T = telephone; R = road; P = pipeline; C = conservation easement; E = electric power transmission lines; ET = electric and telephone line combination; M = miscellaneous; A = agricultural; D = ditch, canal, or culvert. Single character code definitions are obvious, however, an example of a double character code would be 'eX' which describes a wetland easement. Another such example would be 'eRR' which describes a railroad easement.
Attribute Definition Source: USFWS Service Lands Digital Boundary SOP 97-01
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: TRACTNO
Attribute Definition: Tract numbers as assigned by USFWS Realty Division.
Attribute Definition Source: USFWS, Region 1, Division of Realty

Detailed Description:

Entity Type:

Entity Type Label: org_bnd.nat

Attribute:

Attribute Label: ARC#
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: ORG_BND#
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: ORG_BND#
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: ORG_BND-ID

Attribute:

Attribute Label: ORG_BND-ID
Attribute Definition: User-defined feature number.
Attribute Definition Source: ESRI

Resource Description: Downloadable Data
Distribution Liability: See access and use constraints information.
Standard Order Process:

Digital Form:

Digital Transfer Information:

Format Name: Shapefile
Transfer Size: 0

Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1895
Time of Day: Unknown

Metadata Date: 9/23/2013
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: US Fish and Wildlife Service
Contact Person: Mar Kildow

Contact Position: Region 1 GIS Coordinator
Contact Address:

Address Type: mailing and physical address
Address: 911 NE 11th Avenue
City: Portland
State or Province: OR
Postal Code: 97232

Contact Voice Telephone: (503) 231-2371
Contact Electronic Mail Address: Mark_Kildow@fws.gov

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
