Newport Commercial Dungeness Crab Stated Importance Percent Volume Contours, Ecotrust, 2012

Citation:

Citation Information:

Originator: Ecotrust
Publication Date: 20101231
Title: Newport Commercial Dungeness Crab Stated Importance Percent Volume Contours, Ecotrust, 2012
Geospatial Data Presentation Form: vector digital data

Description:

Abstract:

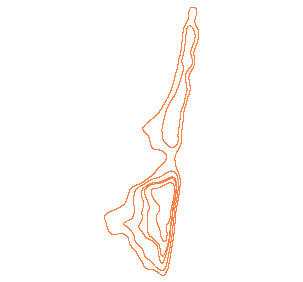

These data are a percent volume contour polygons derived from the aggregation of fishing ground layers. This included commercial Dungeness Crab fishing. A percent volume contour (i.e. Isopleth) represents the boundary of the area that contains x% of the volume of a probability density distribution. In this case the probability density distribution is the stated importance of the fishing grounds. These data were developed as part of the Marine Fisheries Uses and Values Project - winter of 2009 through the summer of 2010. This project was part of the Oregon Territorial Sea Plan Amendment Process
Purpose: The purpose of these data are to delineate the top 10%, 20%, 25%, 50%, & 75% (respectively) of the Commercial Dungeness Crab fishing grounds value. Value in this case is stated importance.

Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1/2010
Time of Day: Unknown

Currentness Reference: ground condition

Status:

Progress: In work
Maintenance and Update Frequency: Irregular

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.707949
East Bounding Coordinate: -123.947501
North Bounding Coordinate: 45.318657
South Bounding Coordinate: 43.934649

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Habitat
Theme Keyword: Territorial Sea
Theme Keyword: Fishery
Theme Keyword: Fathom
Theme Keyword: Fishing
Theme Keyword: Depth

Theme:

Theme Keyword Thesaurus: ISO 19115 Topic Categories
Theme Keyword: economy
Theme Keyword: oceans

Place:

Place Keyword Thesaurus: None
Place Keyword: Newport
Place Keyword: Oregon Territorial Sea
Place Keyword: Oregon

Access Constraints: Contact Ecotrust about accessing these data.
Use Constraints: Contact Ecotrust about accessing these data.
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Ecotrust
Contact Person: Charles Steinbeck

Contact Position: Director, Marine Spatial Planning Division
Contact Address:

Address Type: mailing and physical address
Address:
721 NW 9th Ave. Suite 200

City: Portland
State or Province: OR
Postal Code: 97209
Country: USA

Contact Voice Telephone: (503) 467-0777,(503) 467-0804
Contact Electronic Mail Address: charles@ecotrust.org,jbonkoski@ecotrust.org

Data Set Credit: Ecotrust recieves credit for creating these data
Security Information:

Security Handling Description: Individual datasets include confidential information that is not to be shared without the fisherman's consent.

Native Data Set Environment: Microsoft Windows XP Version 5.1 (Build 2600) Service Pack 3; ESRI ArcCatalog 9.3.0.1770
Cross Reference:

Citation Information:

Originator: Ecotrust
Publication Date: Unpublished Material
Title: DPO
Other Citation Details: Citation should credit Ecotrust for the creation of this data.

Attribute Accuracy:

Attribute Accuracy Report:
Data was derived from interviews with fishermen and each fisherman gave boundaries to their fishing grounds and the value attributed to those grounds. Not all fishermen have the same method for describing their fishing areas, so there is variablity in the results. Some fishermen would give several very detailed areas and other fishermen would give one large, but less detailed area.
Completeness Report: This data is complete.
Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report: All data is overlayed on NOAA nautical charts, with all layers sharing the same projection.

Vertical Positional Accuracy:

Vertical Positional Accuracy Report: N/A

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: Ecotrust
Publication Date: Unpublished Material
Title: DPO
Other Citation Details: Citation should credit Ecotrust for the creation of this data.

Source Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1/2010
Time of Day: Unknown

Source Currentness Reference: ground condition

Source Citation Abbreviation: DPO

Process Step:

Process Description: Single fishery datasets were created for each of the fishing sectors. The sectors included were commercial, charter, and recreation (or sport).

Process Step:

Process Description: Data are combined through an aggregation process where the landings data are distributed to each shaped based on penny allocations and then combined into one dataset for a fishery.

Process Step:

Process Description:
The data were max normalized using the following equation x = (x - min) / (max - min). The normaliztion put all the datasets on the same scale so that they could be combined without losing valuable areas from samller or lesser valued fisheries. When aggregated together the areas of importance for each fishery are revealed and overlapping areas of importance across fisheries are shown as areas of high importance. The commercial sector analyzed was Dungeness Crab.
Process Step:

Process Description: Quality control to check that penny value equals 100 for each fishery that the fisherman participates in and that the fishery shapes are correct.
Process Date: 20090324

Process Step:

Process Description: Ecotrust staff interviews fisherman, collecting data on fishing grounds, fishing history, and value of fishing grounds.
Process Date: 20090324

Process Step:

Process Description: Edit data to specific area that fisherman described, using north and south boundaries, depth ranges, or other geographic details.
Process Date: 20090324

Process Step:

Process Description: Using Hawth's tools in ArcGIS 9.3, the percent volume contours were produced
Process Date: 20100830
Process Time: 11:47:34

Cloud Cover: 0

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: String
Point and Vector Object Count: 6

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: dcrabt_newr_pvc_line

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: Id

Attribute:

Attribute Label: ISOPLETH
Attribute Definition: A percent volume contour (i.e. Isopleth) represents the boundary of the area that contains x% of the volume of a probability density distribution.

Attribute:

Attribute Label: PERCENT

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Overview Description:

Entity and Attribute Overview: Attributes for individual fishermen includes personal contact information, fishing history, income, fishing areas, and the value of those areas to the fisherman.

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization: Ecotrust
Contact Person: Charles Steinbeck

Contact Position: Director, Marine Spatial Planning Division
Contact Address:

Address Type: mailing and physical address
Address:
721 NW 9th Ave. Suite 200

City: Portland
State or Province: OR
Postal Code: 97209
Country: USA

Contact Voice Telephone: (503) 467-0777,(503) 467-0804
Contact Electronic Mail Address: charles@ecotrust.org,jbonkoski@ecotrust.org

Resource Description: Ecotrust and DLCD determines how the data are used and if they are to be distributed. Ecotrust are the stewards of the data.
Distribution Liability: This data is an aggregation of multiple captains fishing effort, and does not represent individual fishing grounds. See access and use constraints information.
Standard Order Process:

Digital Form:

Digital Transfer Information:

Transfer Size: 0.44

Metadata Date: 9/23/2013
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Ecotrust
Contact Person: Charles Steinbeck

Contact Position: Director, Marine Spatial Planning Division
Contact Address:

Address Type: mailing and physical address
Address:
721 NW 9th Ave. Suite 200

City: Portland
State or Province: OR
Postal Code: 97209
Country: USA

Contact Voice Telephone: (503) 467-0777,(503) 467-0804
Contact Electronic Mail Address: charles@ecotrust.org,jbonkoski@ecotrust.org

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
