Nearshore Seabird Density during summer off the Oregon Coast, CCR, 2000-2010

Citation:

Citation Information:

Originator: Craig Strong, Crescent Coastal Research
Publication Date: Unpublished Material
Title: Nearshore Seabird Density during summer off the Oregon Coast, CCR, 2000-2010
Geospatial Data Presentation Form: vector digital data
Other Citation Details:
Strong, C. 2009. Seabird abundance and distribution during summer off the Oregon and Southern Washington coast. Final report to the US Fish and Wildlife Service and National Fish and Wildlife Foundation, contract # 2005-0127-006. 46 pp.
Online Linkage: Seabirds_Density_CCR_2000-2010.shp

Description:

Abstract:
This dataset contains spatial information for Nearshore seabird density (summed density - all species combined). Product of a survey on densities and diversity of select seabird species within Oregon's nearshore marine environment. Under contract with the U.S. Fish and Wildlife Service, Craig Strong of Crescent Coastal Research conducted quantitative visual surveys of all bird and mammal species, with an emphasis on Marbled Murrelet, during the months of May - September from 1992-present (2011, currently). All surveys were conducted using small boats and multiple observers. Densities and diversity for select species were summarized for the period of 2000-2010, when survey methods were consistent among years.
Purpose:
The primary purpose of these surveys was to monitor the distribution, abundance, and habitat use of Marbled Murrelets over time, for management purposes. The secondary purpose of these surveys was to monitor the distribution, abundance, and habitat use of other seabird species and marine mammals.
Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 2000
Beginning Time: Unknown
Ending Date: 2010
Ending Time: Unknown

Currentness Reference: ground condition

Status:

Progress: In work
Maintenance and Update Frequency: Annually

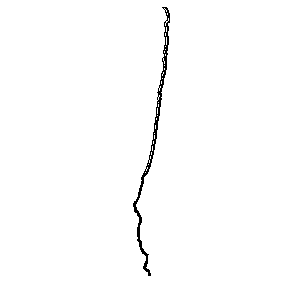

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.845097
East Bounding Coordinate: -123.681782
North Bounding Coordinate: 46.239032
South Bounding Coordinate: 41.631406

Keywords:

Theme:

Theme Keyword Thesaurus: N/A
Theme Keyword: Seabirds
Theme Keyword: Common Murre
Theme Keyword: Brandt's Cormorant
Theme Keyword: Marbled Murrelet
Theme Keyword: Loons
Theme Keyword: Grebes

Place:

Place Keyword Thesaurus: N/A
Place Keyword: Nearshore
Place Keyword: Oregon
Place Keyword: Pacific Northwest

Temporal:

Temporal Keyword Thesaurus: None
Temporal Keyword: Summer

Access Constraints: None
Use Constraints: Not for redistribution
Point of Contact:

Contact Information:

Contact Person Primary:

Contact Person: Craig Strong
Contact Organization: Crescent Coastal Research

Contact Position: Proprietor, Biological Consultant
Contact Electronic Mail Address: cstrong.ccr@charter.net

Native Data Set Environment: Microsoft Windows Vista Version 6.1 (Build 7601) Service Pack 1; ESRI ArcCatalog 9.3.1.4000

Logical Consistency Report:
Data were drawn from two sources: nearshore Oregon, and offshore Oregon. Differences in survey techniques resulted in calculated density estimates that are not directly comparable between sources, however, broad scale comparisons showed differences in avifauna composition down the coast and relative to shore. Data for the Oregon coast are provided in detail per survey segment.
Completeness Report:
The original project area extended from Pt. Grenville, WA to the Oregon-California border within 8000m offshore, and out to 120 km offshore in central and southern Oregon. A total of 32,600 km of at sea transect observations were included. Most of the survey effort was near shore along the Oregon coast between 1992 and 2007, however offshore Oregon data from 2000 and 2002 are also included.
Lineage:

Source Information:

Source Citation Abbreviation: Strong, C., 1992-2007
Source Contribution:
The CCR data includes the Oregon coast, from the Columbia River to Prince Island, California (about 4 km into Calif. Waters), and extending to 5000 m offshore. This is the largest data set since it includes a time series from 1992 to 2007. The coast of northern Oregon consists of long sandy beaches alternating with rocky capes and offshore islands. Central Oregon, from Yaquina Head to Coos Bay, is largely sandy (but with a steeper gradient than found in Washington) with few islands. Southern Oregon has an increasingly rocky shoreline as one travels south, with numerous sea stacks. Estuaries intersperse the sandy beaches of north and central Oregon, but are fewer and smaller in the south
Source Information:

Source Citation Abbreviation: Ainley, GLOBEC, 2000-02
Source Contribution:
Offshore Oregon seabird data from the GLOBEC cruises provided by Dr. Ainley extends from 0.5 to 120 km out to sea between Newport, OR and the California border following a pattern designed to sample cross-shelf oceanographic parameters (Figures 4 and 5).
Process Step:

Process Description:
At sea transects by both the CCR were designed specifically to sample populations of Marbled Murrelets, though data on other seabirds and mammals were taken concurrently. Vessel surveys were made from 19 to 21 ft. boats equipped with compass, Global Positioning System receiver (GPS), and a sonar depth finder, which also relayed sea surface temperature. Other equipment included binoculars, digital watches, and micro tape recorders for each observer, maps covering planned transect lines, and buoys on measured lines or laser rangefinders.
The deck of the boat was about level with the waterline, thus standing observer viewing height was about 2m above water. Two observers and a vessel driver were on board for all transects. Each observer scanned a 90o arc between the bow and the beam continuously, only using binoculars to confirm identification or to observe plumage or behavior of murrelets. Search effort was directed primarily towards the bow quarters and within 50 m of the vessel, so that densities based on line and narrow strip transects would be at their most accurate. All seabirds within 50 m of both sides of the boat and on the water were recorded.

Process Step:

Process Description:
Using GIS mapping, the coast was divided into contiguous 20 km long Primary Sampling Units (PSU) throughout 5 Marbled Murrelet Conservation Zones. The 20 km length was selected as a distance which provides an adequate sample of seabird density and can be completed by vessel transects in about half a day, allowing completion before seasonal afternoon winds become strong.

Delineation and transect routes were generated using ARCINFO GIS mapping by Ken Ostrom (2000-2002) and Rich Young (2003-2007) at the USFWS region 1 office in Portland for Zones 2 and 3, and by Bill Hogoboom at the RSL office in Arcata for Zone 4.

Cloud Cover: 0

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: G-polygon
Point and Vector Object Count: 140

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: Seabird_Density_CCR_2009

Attribute:

Attribute Label: AllSpp_Den
Attribute Definition: Nearshore seabird density (summed density - all spp combined )
Attribute Definition Source: Strong, 2009

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: n_Yrs
Attribute Definition: Number of years surveyed between 1992 and 2010 that were summarized

Attribute:

Attribute Label: SEGID
Attribute Definition: Survey polygon identifier

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Distributor:

Contact Information:

Contact Person Primary:

Contact Person: Craig Strong
Contact Organization: Crescent Coastal Research

Contact Position: Proprietor, Biological Consultant
Contact Electronic Mail Address: cstrong.ccr@charter.net

Resource Description: Downloadable Data
Standard Order Process:

Digital Form:

Digital Transfer Information:

Transfer Size: 0.235

Metadata Date: 11/22/2011
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Crescent Coastal Research
Contact Person: Craig Strong

Contact Position: Proprietor, Biological Consultant
Contact Address:

Address Type: mailing address
Address: 7700 Bailey Rd
City: Crescent City
State or Province: CA
Postal Code: 95531
Country: U.S.A.

Contact Voice Telephone: (707) 487-0246
Contact Electronic Mail Address: cstrong.ccr@charter.net

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
