Electrical Transmission Lines, USGS, 1993

Citation:

Citation Information:

Originator: U. S. Geological Survey Dept of Earth Resources Observation and Science
Publication Date: unknown
Title: Electrical Transmission Lines, USGS, 1993
Geospatial Data Presentation Form: vector digital data
Publication Information:

Publication Place: http://edc.usgs.gov/products/map/dlg.html
Publisher: USGS

Other Citation Details: http://edc.usgs.gov/products/map/dlg.html
Online Linkage: http://edc2.usgs.gov/geodata/dlg_large/states/OR.php

Description:

Abstract:

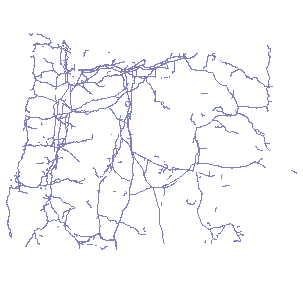

Electrical Transmission lines were extracted from the USGS Digital Line Graph files for Oregon. Digital line graph (DLG) data are digital representations of cartographic information. DLGs of map features are converted to digital form from maps and related sources. Large-scale DLG data are derived from USGS 1: 20,000-, 1: 24,000-, and 1: 25,000-scale 7.5-minute topographic quadrangle maps and are available in nine categories: (1) hypsography, (2) ... hydrography, (3) vegetative surface cover, (4) non-vegetative features, (5) boundaries, (6) survey control and markers, (7) transportation, (8) manmade features, and (9) Public Land Survey System. All DLG data distributed by the USGS are DLG - Level 3 (DLG-3), which means the data contain a full range of attribute codes, have full topological structuring, and have passed certain quality-control checks.
Purpose: General Reference
Supplemental Information:
The U.S. Geological Survey's (USGS) digital line graph (DLG) files are digital vector representations of cartographic information. Data files of topographic and planimetric map features are derived from either aerial photographs or from cartographic source materials using manual and automated digitizing methods. Large Scale The large-scale DLG data primarily are derived from USGS 7.5-minute topographic quadrangle maps at 1:24,000 and 1:25,000 scales (1:25,000 and 1:63,360 scales for Alaska). Intermediate Scale Intermediate or 100,000-scale DLG data are derived from USGS 1:100,000-scale, 30- by 60-minute quadrangle maps. If these maps are not available, Bureau of Land Management (BLM) planimetric maps at a scale of 1:100,000 are used.
Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1/1993
Time of Day: Unknown

Currentness Reference: ground condition

Status:

Progress: Complete
Maintenance and Update Frequency: None planned

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.717803
East Bounding Coordinate: -115.900162
North Bounding Coordinate: 46.42481
South Bounding Coordinate: 41.795139

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Powerlines
Theme Keyword: Electrical
Theme Keyword: Transmission

Place:

Place Keyword Thesaurus: None
Place Keyword: Oregon

Stratum:

Stratum Keyword Thesaurus: None
Stratum Keyword: Ground level

Access Constraints: None
Use Constraints: Not intented for navigation.
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Dept. of Land Conservation and Development
Contact Person: Andy Lanier

Contact Position: Coastal Resource Specialist
Contact Address:

Address Type: mailing and physical address
Address: 635 Capitol St. NE
City: Salem
State or Province: OR
Postal Code: 97301

Contact Voice Telephone: 503.373.0050
Contact Electronic Mail Address: Andy.Lanier@state.or.us
Contact Instructions: Email preferred.

Data Set Credit: USGS
Native Data Set Environment: Microsoft Windows XP Version 5.1 (Build 2600) Service Pack 3; ESRI ArcCatalog 9.3.0.1770

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: String
Point and Vector Object Count: 3168

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Detailed Description:

Entity Type:

Entity Type Label: Electrical_Transmission_Lines_USGS_1993

Attribute:

Attribute Label: Edit_date

Attribute:

Attribute Label: FENAME

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: Esri
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: FNODE_

Attribute:

Attribute Label: LENGTH

Attribute:

Attribute Label: LPOLY_

Attribute:

Attribute Label: MILES

Attribute:

Attribute Label: ORPOWER_

Attribute:

Attribute Label: ORPOWER_ID

Attribute:

Attribute Label: RPOLY_

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: Shape_Le_1

Attribute:

Attribute Label: Shape_Leng

Attribute:

Attribute Label: Source

Attribute:

Attribute Label: TNODE_

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization: Dept. Of Land Conservation and Development
Contact Person: Oregon Coastal Management Program

Contact Address:

Address Type: mailing and physical address
Address: 635 Capitol St. NE
City: Salem
State or Province: OR
Postal Code: 97301
Country: USA

Contact Voice Telephone: 503 - 373- 0050

Resource Description: Downloadable Data
Distribution Liability: Not to be used for navigational purposes.
Standard Order Process:

Digital Form:

Digital Transfer Information:

Transfer Size: 0.89

Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1/2000
Time of Day: Unknown

Metadata Date: 9/23/2013
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Dept. of Land Conservation and Development
Contact Person: Andy Lanier

Contact Position: Coastal Resource Specialist
Contact Address:

Address Type: mailing and physical address
Address: 635 Capitol St. NE
City: Salem
State or Province: OR
Postal Code: 97301

Contact Voice Telephone: 503.373.0050
Contact Electronic Mail Address: Andy.Lanier@state.or.us
Contact Instructions: Email preferred.

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
