Electrical Transmission Lines, BPA, 2010

Citation:

Citation Information:

Originator: Bonneville Power Administration Geospatial Services Department
Publication Date: 2009
Title: Electrical Transmission Lines, BPA, 2010
Geospatial Data Presentation Form: vector digital data

Description:

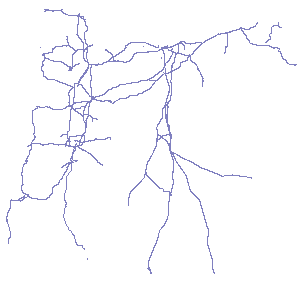

Abstract: Locations of BPA Transmission Lines
Purpose: To show the location of BPA transmission lines.

Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 10/2002
Time of Day: Unknown

Currentness Reference: publication date

Status:

Progress: Complete
Maintenance and Update Frequency: As needed

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.702856
East Bounding Coordinate: -118.034178
North Bounding Coordinate: 46.221799
South Bounding Coordinate: 41.930467

Keywords:

Theme:

Theme Keyword Thesaurus: Content Standard for Digital Geospatial Metadata (CSDGM)
Theme Keyword: utilitiesCommunication

Place:

Place Keyword Thesaurus: None
Place Keyword: Oregon

Access Constraints: None. Public Data.
Use Constraints:
Data files provided are to be used only to determine the general location of BPA facilities; they are not to be used to locate facilities in relationship to property lines, section lines, streets, or any other acceptable survey techniques.
Point of Contact:

Contact Information:

Contact Person Primary:

Contact Person: Doug Wittren
Contact Organization: Bonneville Power Administration

Contact Position: Team Lead - GIS, Geospatial Services Department
Contact Voice Telephone: 360-619-6608
Contact Electronic Mail Address: dlwittren@bpa.gov

Native Data Set Environment: Microsoft Windows XP Version 5.1 (Build 2600) Service Pack 3; ESRI ArcCatalog 9.3.0.1770

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: String
Point and Vector Object Count: 240

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 1312335.958005
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1983
Ellipsoid Name: Geodetic Reference System 80
Semi-major Axis: 6378137
Denominator of Flattening Ratio: 298.257

Vertical Coordinate System Definition:

Altitude System Definition:

Altitude Resolution: 0.000100
Altitude Encoding Method: Explicit elevation coordinate included with horizontal coordinates

Detailed Description:

Entity Type:

Entity Type Label: Electrical_Transmission_Lines_BPA_2010

Attribute:

Attribute Label: FID
Attribute Definition: Internal feature number.
Attribute Definition Source: Esri
Attribute Domain Values:

Unrepresentable Domain: Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute Label: ol_code
Attribute Definition: Xref Code (Unique line ID code)

Attribute:

Attribute Label: ol_opname
Attribute Definition: Operating Line Name

Attribute:

Attribute Label: op_kv
Attribute Definition: Operating Line Voltage

Attribute:

Attribute Label: owner
Attribute Definition: Transmission line owner

Attribute:

Attribute Label: Shape
Attribute Definition: Feature geometry.
Attribute Definition Source: ESRI
Attribute Domain Values:

Unrepresentable Domain: Coordinates defining the features.

Attribute:

Attribute Label: Shape_Leng

Resource Description: Downloadable Data
Standard Order Process:

Digital Form:

Digital Transfer Information:

Transfer Size: 0

Metadata Date: 9/23/2013
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization: Dept. of Land Conservation and Development
Contact Person: Andy Lanier

Contact Position: Coastal Resource Specialist
Contact Address:

Address Type: mailing and physical address
Address: 635 Capitol St. NE
City: Salem
State or Province: OR
Postal Code: 97301

Contact Voice Telephone: 503.373.0050
Contact Electronic Mail Address: Andy.Lanier@state.or.us
Contact Instructions: Email preferred.

Metadata Standard Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata Standard Version: FGDC-STD-001-1998
Metadata Time Convention: local time
