City of Bandon Tax Parcels 2001

Citation:

Citation Information:

Originator: Oregon Ocean-Coastal Management Program
Publication Date: 20010913
Title: City of Bandon Tax Parcels 2001
Edition: 1.0
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Salem, Oregon
Publisher:
Oregon Ocean-Coastal Management Program Oregon Ocean-Coastal Management Program

Other Citation Details:
The Bandon Littoral Cell GIS was the inventory component of the littoral cell planning effort. It was a jointly funded
project between NOAA Coastal Service Center, and the Oregon
Coastal Management Program.

Online Linkage: http://www.lcd.state.or.us/coast/
Larger Work Citation:

Citation Information:

Originator: NOAA Coastal Management Fellow
Publication Date: 2002
Title: Bandon Littoral Cell Management Plan
Publication Information:

Publication Place: Salem, Oregon
Publisher: OCMP

Description:

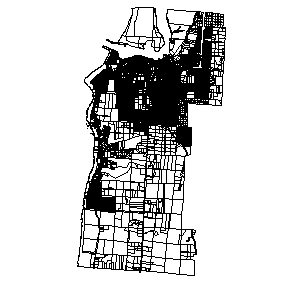

Abstract: This shapefile represents the tax parcel layer encompassing the city and urban growth boundary limits for the City of Bandon.
Purpose:
The purpose of this layer is to represent the tax assessors parcels and provide a means to assess hazards as they relate to ocean front development. Additional work by a subcontractor enabled the parcel layer to be completed for the entire city and thus utilized by the planning department.
Supplemental Information:
The parcel layer contains three seperate pieces of information. The first is the linework acquired in a CAD format from the Dyre Partnership, an engineering group on contract with the City of Bandon. The second piece of information includes the linking attribute which in this case consists of the Section, Township, Range, Quarter Section, and Tax Lot number. The third and final piece of information is the Farm Team database acquired from Ken Gregg under contract with the City of Bandon. This information is obtained from the Coos and Curry County Assessors office.
Time Period of Content:

Time Period Information:

Single Date/Time:

Calendar Date: 1987
Time of Day: Unknown

Currentness Reference: June 2001

Status:

Progress: Complete
Maintenance and Update Frequency: Annually

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.4406
East Bounding Coordinate: -124.3868
North Bounding Coordinate: 43.1342
South Bounding Coordinate: 43.0666

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: Assessors Tax Parcels
Theme Keyword: Tax Lots
Theme Keyword: coastal hazards
Theme Keyword: coastal erosion
Theme Keyword: planning

Place:

Place Keyword Thesaurus: None
Place Keyword: City of Bandon
Place Keyword: Oregon
Place Keyword: Coos County

Access Constraints: none
Use Constraints: not for legal or navigational purposes
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization:
Oregon Ocean Coastal Management Program - Department of Land Conservation and Development

Contact Person: David Revell

Contact Position: NOAA Coastal Management Fellow
Contact Address:

Address Type: mailing and physical address
Address: 635 NE Capitol St. Suite 150
City: Salem
State or Province: Oregon
Postal Code: 97301
Country: USA

Contact Voice Telephone: 503-373-0050
Contact Facsimile Telephone: 503-378-5518
Contact Electronic Mail Address: david.revell@state.or.us

Native Data Set Environment: ArcView version 3.2 shapefile format

Attribute Accuracy:

Attribute Accuracy Report:
Attributes have been updated on 6/01/2001 by Ken Gregg of FarmTeam Database Enterprises. Attributes were reviewed by David Revell - NOAA Coastal Management Fellow, and Jason Locke - City of Bandon Planning Director

Logical Consistency Report: not checked for topology
Completeness Report:
Checked each individual tax lot polygon with existing paper assessors maps.

Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report: +/- twenty feet

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: Oregon Ocean-Coastal Management Program
Publication Date: 20010913
Title: City of Bandon Tax Parcels 2001
Edition: 1.0
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Salem, Oregon
Publisher:
Oregon Ocean-Coastal Management Program Oregon Ocean-Coastal Management Program

Other Citation Details:
The Bandon Littoral Cell GIS was the inventory component of the littoral cell planning effort. It was a jointly funded
project between NOAA Coastal Service Center, and the Oregon
Coastal Management Program.

Online Linkage: http://www.lcd.state.or.us/coast/
Larger Work Citation:

Citation Information:

Originator: NOAA Coastal Management Fellow
Publication Date: 2002
Title: Bandon Littoral Cell Management Plan
Publication Information:

Publication Place: Salem, Oregon
Publisher: OCMP

Source Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: Unknown
Beginning Time: Unknown
Ending Date:
Ending Time: Unknown

Source Currentness Reference: 6-01-01

Source Contribution:
Vector data converted from CAD linework data from Dyre Partnerships contracted with City of Bandon 8/00. Attribute
data from Farm Team Database 6-1-01.

Process Step:

Process Description:
Original linework was created by scanning the tax parcel maps and digitizing the linework in AutoCAD. This linework
was then registered into Oregon Lambert coordinates using
the world file creation in ArcView 3.2. The linework was
then converted into an ArcINFO coverage and registered
using the Geodetic Control Database from BLM and the Ortho
rectified 1994 USGS Quadrangle. Once the linework was
registered and rectified, then topology was built. The file
was then converted back into a shapefile and brought into
ArcView where each polygon was checked for consistency with
the paper maps, and attributed with the Section ,Township,
Range, Quarter Section, and Tax Lot number to create the
linking attribute. Finally this was attributed with the
updated 6-1-01 Farm Team database to create the existing shapfile.

Process Date: 9-13-01

Cloud Cover: 0

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: GT-polygon composed of chains
Point and Vector Object Count: 11722

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1927
Ellipsoid Name: Clarke 1866
Semi-major Axis: 6378206
Denominator of Flattening Ratio: 294.9786982

Detailed Description:

Entity Type:

Entity Type Label: band_parc9-13.dbf
Entity Type Definition: Shapefile Attribute Table
Entity Type Definition Source: None

Attribute:

Attribute Label: Account_no
Attribute Definition: Assessors Tax Account #
Attribute Definition Source: FarmTeam Database
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 248219

Attribute:

Attribute Label: Acres
Attribute Definition: acreage
Attribute Definition Source: farmteam
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 167

Attribute:

Attribute Label: Address_1
Attribute Definition: address of property
Attribute Domain Values:

Unrepresentable Domain: property address

Attribute:

Attribute Label: Address_2
Attribute Definition: owner mailing address
Attribute Domain Values:

Unrepresentable Domain: mailing address

Attribute:

Attribute Label: Address_3
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Architect_
Attribute Definition: Architectural Overlay Zone
Attribute Domain Values:

Unrepresentable Domain: Yes or No

Attribute:

Attribute Label: Assessed_i
Attribute Definition: assessed initial value
Attribute Definition Source: farmteam
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 5.7725e+006

Attribute:

Attribute Label: Assessed_l
Attribute Definition: assessed improvements
Attribute Definition Source: farmteam
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 2.27052e+006

Attribute:

Attribute Label: Baths
Attribute Definition: number of baths
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 20

Attribute:

Attribute Label: Bedrooms
Attribute Definition: number of bedrooms
Attribute Definition Source: farmteam
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 6

Attribute:

Attribute Label: Care_of_fl
Attribute Definition: property trustee
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Care_of_na
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Carrier_ro
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: City_limit
Attribute Definition: Inside the City of Bandon Limit
Attribute Domain Values:

Unrepresentable Domain: Inside City of Bandon City Limits

Attribute:

Attribute Label: Cityline
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Code_area
Attribute Definition: Area of polygon
Attribute Definition Source: Software generated
Attribute Domain Values:

Unrepresentable Domain: Software computed

Attribute:

Attribute Label: Deed_type
Attribute Domain Values:

Unrepresentable Domain: deed type

Attribute:

Attribute Label: Dining_roo
Attribute Definition: Dining Room
Attribute Definition Source: Farmteam
Attribute Domain Values:

Unrepresentable Domain: dining room

Attribute:

Attribute Label: Entry_room
Attribute Domain Values:

Unrepresentable Domain: entry room

Attribute:

Attribute Label: Family_roo
Attribute Definition: family room
Attribute Domain Values:

Unrepresentable Domain: family room

Attribute:

Attribute Label: Finlink
Attribute Definition: Section, Township, Range, QrtrSection, Tax Lot
Attribute Definition Source: City of Bandon
Attribute Domain Values:

Unrepresentable Domain: Link Number

Attribute:

Attribute Label: Garage_att
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Garage_sq_
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Juris
Attribute Definition: Jurisdiction
Attribute Domain Values:

Unrepresentable Domain: City of Bandon, Coos & Curry Counties

Attribute:

Attribute Label: Legal
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Market_imp
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 5.7725e+006

Attribute:

Attribute Label: Market_lan
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 2.27052e+006

Attribute:

Attribute Label: Mav
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 2.68929e+006

Attribute:

Attribute Label: Mobile_acc
Attribute Domain Values:

Unrepresentable Domain: charcter field

Attribute:

Attribute Label: Mobile_tot
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 74366

Attribute:

Attribute Label: Msavimprov
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 0

Attribute:

Attribute Label: Msavland
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 0

Attribute:

Attribute Label: Multi_owne
Attribute Definition: multiple owners?
Attribute Domain Values:

Unrepresentable Domain: multiple owners?

Attribute:

Attribute Label: Owner_alph
Attribute Definition: Owner Name
Attribute Definition Source: Farm Team
Attribute Domain Values:

Unrepresentable Domain: Onwer name

Attribute:

Attribute Label: Owner_name
Attribute Definition: Owner name
Attribute Domain Values:

Unrepresentable Domain: owner name

Attribute:

Attribute Label: Parcel_no_
Attribute Definition: Tax Assessors ID Number
Attribute Definition Source: City of Bandon
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 999999

Attribute:

Attribute Label: Parcelstrg
Attribute Definition: Parcel Number
Attribute Domain Values:

Unrepresentable Domain: parcel #

Attribute:

Attribute Label: Parent_acc
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Phone_numb
Attribute Definition: phone number
Attribute Domain Values:

Unrepresentable Domain: phone number

Attribute:

Attribute Label: Property_c
Attribute Definition: property class
Attribute Domain Values:

Unrepresentable Domain: property class

Attribute:

Attribute Label: Property_z
Attribute Definition: Property Zip Code
Attribute Definition Source: Farm Team
Attribute Domain Values:

Unrepresentable Domain: Property Zip Code

Attribute:

Attribute Label: Qtr_sectio
Attribute Definition: Quarter Section
Attribute Domain Values:

Unrepresentable Domain: quarter section

Attribute:

Attribute Label: Qtrsection
Attribute Definition: Quarter Section
Attribute Definition Source: City of Bandon
Attribute Domain Values:

Unrepresentable Domain: Quarter Section

Attribute:

Attribute Label: Range
Attribute Definition: range
Attribute Definition Source: Farmteam
Attribute Domain Values:

Unrepresentable Domain: range

Attribute:

Attribute Label: Range_dir
Attribute Definition: range direction
Attribute Definition Source: farmteam
Attribute Domain Values:

Unrepresentable Domain: range direction

Attribute:

Attribute Label: Rec_room_d
Attribute Definition: Rec Room
Attribute Domain Values:

Unrepresentable Domain: rec room

Attribute:

Attribute Label: Ref__
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Res_sq_ft
Attribute Definition: residential square feet
Attribute Definition Source: farmteam
Attribute Domain Values:

Unrepresentable Domain: residential square feet

Attribute:

Attribute Label: Rmv
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 6.11378e+006

Attribute:

Attribute Label: Rolltype
Attribute Definition: Assessors Roll Type
Attribute Domain Values:

Unrepresentable Domain: Roll Type

Attribute:

Attribute Label: Sale_date
Attribute Definition: date of sale
Attribute Definition Source: farm team
Attribute Domain Values:

Unrepresentable Domain: date of sale

Attribute:

Attribute Label: Sale_price
Attribute Domain Values:

Unrepresentable Domain: sale price

Attribute:

Attribute Label: Sav
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 266094

Attribute:

Attribute Label: Section
Attribute Definition: Section
Attribute Domain Values:

Unrepresentable Domain: Section

Attribute:

Attribute Label: Section
Attribute Definition: section
Attribute Definition Source: farmteam
Attribute Domain Values:

Unrepresentable Domain: section

Attribute:

Attribute Label: Seg_from_a
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Segconsspl
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Shoreland
Attribute Definition: Shoreland Hazard Overlay
Attribute Definition Source: City of Bandon
Attribute Domain Values:

Unrepresentable Domain: Yes or No

Attribute:

Attribute Label: Smav
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 0

Attribute:

Attribute Label: Specint_al
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Specint_nu
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Stat_class
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Stories
Attribute Definition: number of stories
Attribute Domain Values:

Unrepresentable Domain: number of stories

Attribute:

Attribute Label: Street_dir
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Street_nam
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Street_nam
Attribute Domain Values:

Unrepresentable Domain: Character Field

Attribute:

Attribute Label: Street_no
Attribute Definition: Street address number
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 192445

Attribute:

Attribute Label: Street_no_
Attribute Definition: Street address number
Attribute Domain Values:

Unrepresentable Domain: Street address number

Attribute:

Attribute Label: T_r
Attribute Definition: Township and Range
Attribute Domain Values:

Unrepresentable Domain: Township and Range

Attribute:

Attribute Label: Tav
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 2.68929e+006

Attribute:

Attribute Label: Tax_lot
Attribute Definition: tax lot
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 90110

Attribute:

Attribute Label: Taxes
Attribute Definition: taxes
Attribute Definition Source: farmteam
Attribute Domain Values:

Unrepresentable Domain: taxes

Attribute:

Attribute Label: Total_asse
Attribute Definition: total assessed property value
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 6.11378e+006

Attribute:

Attribute Label: Township
Attribute Definition: Township
Attribute Definition Source: Farmteam
Attribute Domain Values:

Unrepresentable Domain: Township

Attribute:

Attribute Label: Township_d
Attribute Definition: Township direction
Attribute Definition Source: Farmteam
Attribute Domain Values:

Unrepresentable Domain: Township direction

Attribute:

Attribute Label: Ugb
Attribute Definition: Inside of Urban Growth Boundary?
Attribute Domain Values:

Codeset Domain:

Codeset Name: Yes
Codeset Source: OCMP

Attribute:

Attribute Label: Utility_ro
Attribute Domain Values:

Unrepresentable Domain: utlity room

Attribute:

Attribute Label: Year_built
Attribute Definition: year built
Attribute Definition Source: farm team
Attribute Domain Values:

Range Domain:

Range Domain Minimum: 0
Range Domain Maximum: 2000

Attribute:

Attribute Label: Zip_code
Attribute Definition: Zip Code of mailing address
Attribute Definition Source: Farm Team
Attribute Domain Values:

Unrepresentable Domain: Zip Code

Attribute:

Attribute Label: Zoning
Attribute Definition: Zoning
Attribute Definition Source: FarmTeam
Attribute Domain Values:

Unrepresentable Domain: Zoning

Attribute:

Attribute Label: Zoning
Attribute Definition: Zoning
Attribute Definition Source: City of Bandon
Attribute Domain Values:

Unrepresentable Domain: Zoning

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization:
Oregon Ocean Coastal Management Program - Department of Land Conservation and Development

Contact Person: David Revell

Contact Position: NOAA Coastal Management Fellow
Contact Address:

Address Type: mailing and physical address
Address: 635 NE Capitol St. Suite 150
City: Salem
State or Province: Oregon
Postal Code: 97301
Country: USA

Contact Voice Telephone: 503-373-0050
Contact Facsimile Telephone: 503-378-5518
Contact Electronic Mail Address: david.revell@state.or.us

Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1969
Time of Day: Unknown

Metadata Date:
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization:
Oregon Ocean Coastal Management Program - Department of Land Conservation and Development

Contact Person: David Revell

Contact Position: NOAA Coastal Management Fellow
Contact Address:

Address Type: mailing and physical address
Address: 635 NE Capitol St. Suite 150
City: Salem
State or Province: Oregon
Postal Code: 97301
Country: USA

Contact Voice Telephone: 503-373-0050
Contact Facsimile Telephone: 503-378-5518
Contact Electronic Mail Address: david.revell@state.or.us

Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
