City of Bandon Open & Closed Roads

Citation:

Citation Information:

Originator: Oregon Ocean Coastal Management Program
Publication Date: 20010913
Title: City of Bandon Open & Closed Roads
Edition: 1.0
Geospatial Data Presentation Form: Map
Publication Information:

Publication Place: Salem, Oregon
Publisher:
Oregon Ocean-Coastal Management Program Oregon Ocean-Coastal Management Program

Online Linkage: http://www.lcd.state.or.us/coast/
Larger Work Citation:

Citation Information:

Originator: NOAA Coastal Management Fellow
Publication Date: 2002
Title: Bandon Littoral Cell Management Plan
Publication Information:

Publication Place: Salem, Oregon
Publisher: OCMP

Description:

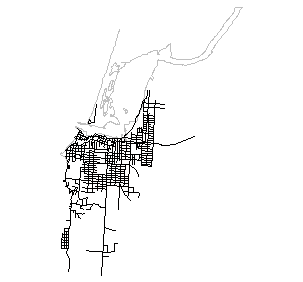

Abstract: This shapefile represents roads layer within the city limits for the City of Bandon
Purpose: Thr purpose of this layer is to inventory the roads in the city limits and classify them according to existing planning documents.
Supplemental Information:
This layer was digitized using a variety of different lineworks. Those that fit with the paper maps, were saved,
those that did not were thrown out. The classification
methods were based on a series of paper maps available from
the city of Bandon

Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: 2009
Beginning Time: Unknown
Ending Date: 1/2007
Ending Time: Unknown

Currentness Reference: 7/2/01

Status:

Progress: Complete
Maintenance and Update Frequency: As needed

Spatial Domain:

Bounding Coordinates:

West Bounding Coordinate: -124.4368
East Bounding Coordinate: -124.3744
North Bounding Coordinate: 43.1368
South Bounding Coordinate: 43.0746

Keywords:

Theme:

Theme Keyword Thesaurus: None
Theme Keyword: City Limits
Theme Keyword: planning
Theme Keyword: roads
Theme Keyword: open closed

Place:

Place Keyword Thesaurus: None
Place Keyword: City of Bandon
Place Keyword: Coos County
Place Keyword: Oregon

Access Constraints: None
Use Constraints: Not legal definitions
Point of Contact:

Contact Information:

Contact Organization Primary:

Contact Organization:
Oregon Ocean Coastal Management Program - Department of Land Conservation and Development

Contact Person: David Revell

Contact Position: NOAA Coastal Management Fellow
Contact Address:

Address Type: mailing and physical address
Address: 635 NE Capitol St. Suite 150
City: Salem
State or Province: Oregon
Postal Code: 97301
Country: USA

Contact Voice Telephone: 503-373-0050
Contact Facsimile Telephone: 503-378-5518
Contact Electronic Mail Address: david.revell@state.or.us

Native Data Set Environment: ArcView version 3.2 shapefile format

Attribute Accuracy:

Attribute Accuracy Report:
Updated 3/27/02. Attributes were reviewed by David Revell - NOAA Coastal Management Fellow, and Jason Locke - City of Bandon Planning Director.

Logical Consistency Report: topologically correct
Completeness Report:
Checked each individual road seqment with existing paper planning maps.

Positional Accuracy:

Horizontal Positional Accuracy:

Horizontal Positional Accuracy Report: +/- twenty feet

Lineage:

Source Information:

Source Citation:

Citation Information:

Originator: Oregon Ocean-Coastal Management Program
Publication Date: 20010913
Title: Open closed roads
Edition: 1.0
Geospatial Data Presentation Form: map
Publication Information:

Publication Place: Salem, Oregon
Publisher:
Oregon Ocean-Coastal Management Program Oregon Ocean-Coastal Management Program

Online Linkage: http://www.lcd.state.or.us/coast/
Larger Work Citation:

Citation Information:

Originator: NOAA Coastal Management Fellow
Publication Date: 2002
Title: Bandon Littoral Cell Management Plan
Publication Information:

Publication Place: Salem, Oregon
Publisher: OCMP

Source Scale Denominator: 1200
Type of Source Media: paper map
Source Time Period of Content:

Time Period Information:

Range of Dates/Times:

Beginning Date: Unknown
Beginning Time: Unknown
Ending Date: 1/2006
Ending Time: Unknown

Source Currentness Reference: unknown

Source Contribution:
Vector data converted from multiple unknown sources and corrected to fit the Bandon Tax Parcel map.

Process Step:

Process Description:
Combine roads information from USGS, BLM, and City of Bandon then union into a single shapefile. Then digitize
missing roads and eliminate extra ones. The source of the
line data is preserved in the attribute source. Then
classify each road segment based on the City of Bandon Classification

Process Date: 7/2/01

Cloud Cover: 0

Direct Spatial Reference Method: Vector
Point and Vector Object Information:

SDTS Terms Description:

SDTS Point and Vector Object Type: Complete Chain
Point and Vector Object Count: 1239

Horizontal Coordinate System Definition:

Planar:

Map Projection:

Map Projection Name: Lambert Conformal Conic
Lambert Conformal Conic:

Standard Parallel: 43
Standard Parallel: 45.5
Longitude of Central Meridian: -120.5
Latitude of Projection Origin: 41.75
False Easting: 400000
False Northing: 0

Planar Coordinate Information:

Planar Coordinate Encoding Method: Coordinate Pair
Coordinate Representation:

Abscissa Resolution: 0
Ordinate Resolution: 0

Planar Distance Units: international feet

Geodetic Model:

Horizontal Datum Name: North American Datum of 1927
Ellipsoid Name: Clarke 1866
Semi-major Axis: 6378206
Denominator of Flattening Ratio: 294.9786982

Detailed Description:

Entity Type:

Entity Type Label: open-closed.dbf
Entity Type Definition: Shapefile Attribute Table
Entity Type Definition Source: None

Attribute:

Attribute Label: Classifica
Attribute Definition: Road classification
Attribute Definition Source: City of Bandon
Attribute Domain Values:

Unrepresentable Domain: Road classification

Attribute:

Attribute Label: Road_name
Attribute Definition: Road name
Attribute Definition Source: City of Bandon
Attribute Domain Values:

Unrepresentable Domain: Road Name

Attribute:

Attribute Label: Spatialsou
Attribute Definition: Source of Linework
Attribute Definition Source: City of Bandon
Attribute Domain Values:

Unrepresentable Domain: Source of Linework data

Distributor:

Contact Information:

Contact Organization Primary:

Contact Organization:
Oregon Ocean Coastal Management Program - Department of Land Conservation and Development

Contact Person: David Revell

Contact Position: NOAA Coastal Management Fellow
Contact Address:

Address Type: mailing and physical address
Address: 635 NE Capitol St. Suite 150
City: Salem
State or Province: Oregon
Postal Code: 97301
Country: USA

Contact Voice Telephone: 503-373-0050
Contact Facsimile Telephone: 503-378-5518
Contact Electronic Mail Address: david.revell@state.or.us

Available Time Period:

Time Period Information:

Single Date/Time:

Calendar Date: 1/1924
Time of Day: Unknown

Metadata Date:
Metadata Review Date:
Metadata Future Review Date:
Metadata Contact:

Contact Information:

Contact Organization Primary:

Contact Organization:
Oregon Ocean Coastal Management Program - Department of Land Conservation and Development

Contact Person: David Revell

Contact Position: NOAA Coastal Management Fellow
Contact Address:

Address Type: mailing and physical address
Address: 635 NE Capitol St. Suite 150
City: Salem
State or Province: Oregon
Postal Code: 97301
Country: USA

Contact Voice Telephone: 503-373-0050
Contact Facsimile Telephone: 503-378-5518
Contact Electronic Mail Address: david.revell@state.or.us

Metadata Standard Name: FGDC CSDGM
Metadata Standard Version: FGDC-STD-001-1998
